Каталог запасных частей к технике: Foton Sauvana (AT) (2017). 1SD1805000124 Vehicle boby assembly (6483RD6VC-A1ZA02, 6483RD6VC-A1ZA04, 6483RD6VC-A1ZA05)
1.2
1.2.1
1.2.2
1.2.3
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1SD1805000124 | 1***4 | Vehicle boby assembly | |
| U1500010100А0 | U***0 | Adjuster assembly, white vehicle body | |
| 1 | U***0 | Body weldment assembly | |
| 1.1 | P***0 | Roof 1st crossbeam assembly | |
| 1.10 | U***0 | Left B-pillar side collision sensor reinforcement plate | |
| 1.11 | U***0 | Right B-pillar side collision sensor reinforcement plate | |

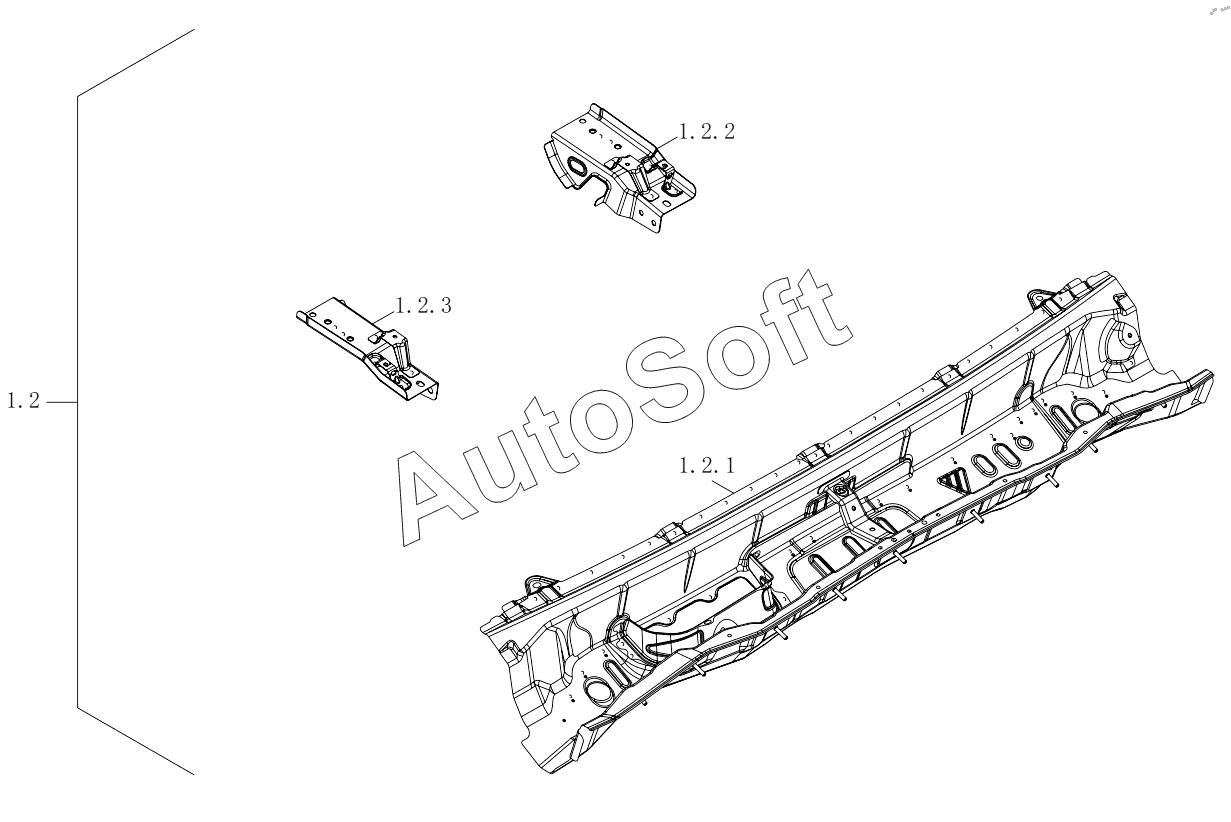

| 1.2 | U***0 | Front windscreen lower crossbeam assembly | |
| 1.2.1 | U***0 | Front windscreen lower crossbeam body assembly | |
| 1.2.2 | U***0 | Front windscreen lower crossbeam left end plate assembly | |
| 1.2.3 | U***0 | Front windscreen lower crossbeam right end plate assembly | |
| 1.3 | U***0 | Left side wall weldment assembly | |
| 1.3.1 | U***0 | Left C-/D-pillar inner panel assembly | |
| 1.3.2 | U***0 | Welded inner panel assembly, A-pillar | |
| 1.3.3 | U***0 | Left side wall outer panel weldment assembly | |
| 1.3.4 | U***0 | Left middle inner panel weldment assembly | |
| 1.4 | U***0 | Welded side wall assembly | |
| 1.4.1 | U***0 | Right C-/D-pillar inner panel assembly | |
| 1.4.2 | U***0 | Welded inner panel assembly, A-pillar | |
| 1.4.3 | U***0 | Right side wall outer panel weldment assembly | |
| 1.4.4 | U***0 | Right middle inner panel weldment assembly | |
| 1.5 | U***0 | Roof 7th crossbeam assembly | |
| 1.5.1 | U***0 | Roof 7th crossbeam upper panel assembly | |
| 1.5.2 | U***0 | Roof 7th crossbeam lower panel | |
| 1.6 | U***0 | Ceiling assembly | |
| 1.6.1 | U***0 | Sunroof reinforcement plate assembly | |
| 1.6.2 | U***0 | Roof 4th crossbeam | |
| 1.6.3 | U***0 | Roof outer panel | |
| 1.6.4 | U***0 | Roof 5th crossbeam | |
| 1.6.5 | U***0 | Roof 6th crossbeam | |
| 1.7 | U***0 | Chassis weldment assembly | |
| 1.7.1 | U***0 | Front wall welded assembly | |
| 1.7.2 | U***0 | Front floor weldment assembly | |
| 1.7.3 | U***0 | Floor rear weldment assembly | |
| 1.8 | P***0 | Cab left front end plate | |
| 1.9 | P***0 | Cab right front end plate | |
| 10 | U***0 | Rear bumper left side wall connecting bracket | |
| 11 | U***0 | Rear bumper right side wall connecting bracket | |
| 12 | U***0 | Central console mounting bracket 2 | |
| 13 | U***0 | Fender | |
| 14 | U***0 | Fender | |
| 15 | U***0 | Rear bumper mounting bracket 1 | |
| 16 | U***0 | Rear bumper mounting bracket 2 | |
| 17 | U***0 | Front bumper lower mounting bracket | |
| 18 | U***0 | Front bumper side mounting bracket | |
| 19 | U***0 | B-pillar left lower foam material | |
| 2 | P***0 | Tubular beam right mounting bracket assembly | |
| 20 | U***0 | B-pillar right lower foam material | |
| 21 | U***0 | Side wall front high foam filling material | |
| 22 | U***0 | B-pillar foam material 1 | |
| 23 | U***0 | B-pillar foam material 2 | |
| 24 | U***0 | Roof 1st crossbeam high foam filling material | |
| 25 | U***0 | C-pillar foam material | |
| 26 | U***0 | D-pillar foam material | |
| 27 | U***0 | Sunroof left mounting bracket 2 | |
| 28 | U***0 | Sunroof left mounting bracket 1 | |
| 29 | U***0 | Sunroof right mounting bracket 2 | |
| 3 | P***0 | Central console mounting bracket assembly 1 | |
| 30 | U***0 | Sunroof right mounting bracket 1 | |
| 31 | U***0 | Fender reinforcement plate | |
| 4 | U***0 | Rear bumper support plate assembly | |
| 5 | U***0 | Left fender 4th mounting bracket assembly | |
| 6 | U***0 | Right fender 4th mounting bracket assembly | |
| 7 | U***0 | Jack mounting bracket assembly | |
| 8 | U***0 | Left B-pillar side handrail mounting bracket assembly | |
| 9 | U***0 | Right B-pillar side handrail mounting bracket assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
