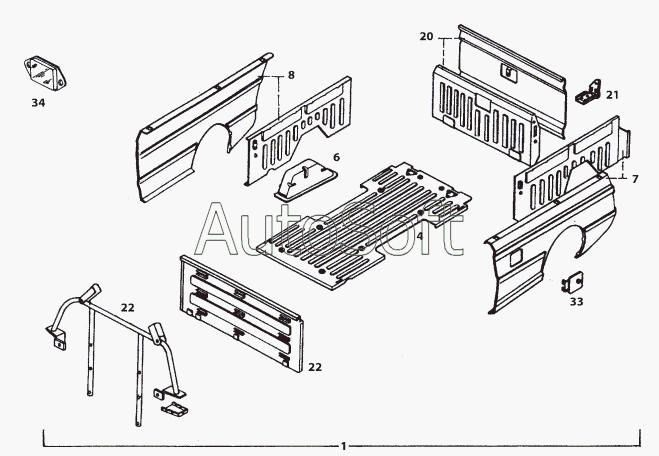

Каталог запасных частей к технике: Tata Telcoline-207 (2006). ASSY. LOAD BODY (CREW CAB)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
6
7
8
20
21
22
22
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2653 7000 63 01 | 2***1 | Liner Inner LH (Rear Wheel Arch) | |
| 2653 7000 63 02 | 2***2 | Liner Inner RH (Rear Wheel Arch) | |
| 2653 7000 63 03 | 2***3 | Mudflap rear with T | |
| 2653 7000 63 18 | 2***8 | Mudflap rear with T | |
| 2654 7000 63 05 | 2***5 | Mudguard Liner LH | |
| 2654 7000 63 15 | 2***5 | Mudguard Liner RH | |
| 2654 7030 34 01 | 2***1 | Bush | |
| 2654 7080 01 09 | 2***9 | Assy Bolt With Nylon Insert | |
| 2654 7080 92 03 | 2***3 | Washer | |
| 2721 7000 01 19BF | 2***F | Assy Load Body Complete With Fitments LHD, Artic White | |
| 2721 7000 01 19BG | 2***G | Assy Load Body Complete With Fitments LHD, | |
| 2721 7000 01 19BM | 2***M | Assy Load Body Complete With Fitments LHD, Fiji Blue | |
| 2721 7000 01 19BN | 2***N | Assy Load Body Complete With Fitments LHD, Ruby Red | |
| 2721 7000 01 19BP | 2***P | Assy Load Body Complete With Fitments LHD, Metalic Silver | |
| 2721 7000 01 19D3 | 2***3 | Assy Load Body Complete With Fitments LHD, Artic Silver | |
| 2721 7000 01 19D5 | 2***5 | Assy Load Body Complete With Fitments LHD, Timber Green | |
| 2721 7000 01 19D7 | 2***7 | Assy Load Body Complete With Fitments LHD, Silver Mist | |
| 2721 7000 01 19DP | 2***P | Assy Load Body Complete With Fitments LHD, Passion Red | |
| 2721 7000 01 19DU | 2***U | Assy Load Body Complete With Fitments LHD, Quartz black | |
| 2721 7000 01 20BF | 2***F | Assy Load Body Complete With Fitments RHD, Artic White | |
| 2721 7000 01 20BG | 2***G | Assy Load Body Complete With Fitments RHD, | |
| 2721 7000 01 20BM | 2***M | Assy Load Body Complete With Fitments RHD, Fiji Blue | |
| 2721 7000 01 20BN | 2***N | Assy Load Body Complete With Fitments RHD, Ruby Red | |
| 2721 7000 01 20D3 | 2***3 | Assy Load Body Complete With Fitments RHD, Artic Silver | |
| 2721 7000 01 20D5 | 2***5 | Assy Load Body Complete With Fitments RHD, Timber Green | |
| 2721 7000 01 20DP | 2***P | Assy Load Body Complete With Fitments RHD, Passion Red | |
| 2721 7000 01 21BF | 2***F | Assy Load Body Complete With Fitments RHD, Artic White | |
| 2721 7000 01 21BG | 2***G | Assy Load Body Complete With Fitments RHD, | |
| 2721 7000 01 21BM | 2***M | Assy Load Body Complete With Fitments RHD, Fiji Blue | |
| 2721 7000 01 21BN | 2***N | Assy Load Body Complete With Fitments RHD, Ruby Red | |
| 2721 7000 01 21C3 | 2***3 | Assy Load Body Complete With Fitments RHD, Mica Black | |
| 2721 7000 01 21D3 | 2***3 | Assy Load Body Complete With Fitments RHD, Artic Silver | |
| 2721 7000 01 21D5 | 2***5 | Assy Load Body Complete With Fitments RHD, Timber Green | |
| 2721 7000 01 21D7 | 2***7 | Assy Load Body Complete With Fitments RHD, Silver Mist | |
| 2721 7000 01 21DU | 2***U | Assy Load Body Complete With Fitments RHD, Quartz black | |
| 1 | 2***F | Assy Load Body Painted Without Fitments LHD, Artic White | |
| 1 | 2***G | Assy Load Body Painted Without Fitments LHD, | |
| 1 | 2***M | Assy Load Body Painted Without Fitments LHD, Fiji Blue | |
| 1 | 2***N | Assy Load Body Painted Without Fitments LHD, Ruby Red | |
| 1 | 2***P | Assy Load Body Painted Without Fitments LHD, Metalic Silver | |
| 1 | 2***3 | Assy Load Body Painted Without Fitments LHD, Artic Silver | |
| 1 | 2***5 | Assy Load Body Painted Without Fitments LHD, Timber Green | |
| 1 | 2***7 | Assy Load Body Painted Without Fitments LHD, Silver Mist | |
| 1 | 2***P | Assy Load Body Painted Without Fitments LHD, Passion Red | |
| 1 | 2***U | Assy Load Body Painted Without Fitments LHD, Quartz black | |
| 1 | 2***F | Assy Load Body Painted Without Fitments RHD, Artic White | |
| 1 | 2***G | Assy Load Body Painted Without Fitments RHD, | |
| 1 | 2***M | Assy Load Body Painted Without Fitments RHD, Fiji Blue | |
| 1 | 2***N | Assy Load Body Painted Without Fitments RHD, Ruby Red | |
| 1 | 2***3 | Assy Load Body Painted Without Fitments RHD, Mica Black | |
| 1 | 2***3 | Assy Load Body Painted Without Fitments RHD, Artic Silver | |
| 1 | 2***5 | Assy Load Body Painted Without Fitments RHD, Timber Green | |
| 1 | 2***7 | Assy Load Body Painted Without Fitments RHD, Silver Mist | |
| 1 | 2***P | Assy Load Body Painted Without Fitments RHD, Passion Red | |
| 1 | 2***U | Assy Load Body Painted Without Fitments RHD, Quartz black | |
| 4 | 2***7 | Floor Panel | |
| 6 | 2***9 | Wheel Arch Panel | |
| 7 | 2***3 | Assy Side Wall LH | |
| 8 | 2***4 | Assy Side Wall RH | |
| 20 | 2***0 | Assy. Tail Gate Shell | |
| 21 | 2***3 | Assy. Hinge | |
| 22 | 2***1 | Assy. Load Guard | |
| 33 | 2***7 | Assy Lid | |
| 34 | 2***1 | Reflex Reflector |
