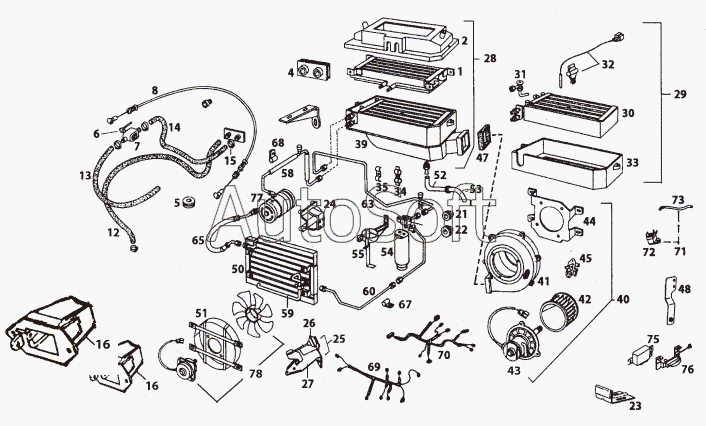

Каталог запасных частей к технике: Tata Telcoline-207 (2006). AC + HEATING AND DEMISTING SYSTEM
1
1
1
1
2
2
2
2
4
4
5
5
6
6
7
7
8
8
8
8
12
12
13
13
13
13
14
14
14
14
15
15
16
16
16
16
16
16
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
39
39
39
39
40
40
40
40
41
41
41
41
42
42
42
42
43
43
44
44
44
44
45
45
47
47
48
48
48
48
50
50
50
50
51
51
51
51
52
52
53
53
54
54
55
55
55
55
58
58
58
58
58
58
59
59
59
59
60
60
60
60
63
63
63
63
65
65
65
65
67
67
68
68
69
69
70
70
71
71
72
72
73
73
75
75
76
76
77
77
78
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 000 997 34 81 | 0***1 | Rubber Grommet. | |
| 2547 2312 02 52 | 2***2 | Assy. A/C Compressor {10S11} {Subros} | |
| 2651 8340 63 01 | 2***1 | Grommet (For Ac Hoses) | |
| 2654 8350 58 05 | 2***5 | Rubber Hose (17 Id X L 950) | |
| 2658 5460 75 12 | 2***2 | Rubber Grommet | |
| 2659 8310 42 01 | 2***1 | Clamp (Vacuum Hose) | |
| 2659 8310 82 84 | 2***4 | Stay Bracket | |
| 2659 8310 82 97 | 2***7 | Clamp (Rd Outlet) Subros | |
| 2659 8310 82 99 | 2***9 | Clamp (Rd Outlet) Subros | |
| 2659 8311 01 07 | 2***7 | Assy Air Duct-RHD | |
| 2659 8330 01 80 | 2***0 | Assy Push Pull Cable - White | |
| 2659 8341 01 08 | 2***8 | Assy Tube Liquid (Condensor Coil Inlet)LHD | |
| 1 | 2***8 | Assy Heater Coil (Teksons) | |
| 1 | 2***1 | Assy Heater Coil | |
| 2 | 2***8 | Assy Adaptor (Suitable For Heater) | |
| 2 | 2***3 | Assy Adaptor (Suitable For Heater) | |
| 4 | 2***7 | Cover (For Heater Cut Out) | |
| 5 | 2***2 | Rubber Grommet | |
| 6 | 2***9 | Assy Lever (N/D Type Water Valve | |
| 7 | 2***8 | Assy Water Valve-(5113600605) | |
| 8 | 2***0 | Assy Push Pull Cable - White | |
| 8 | 2***1 | Assy Push Pull Cable (Aepl) White | |
| 12 | 2***5 | Rubber Hose (17 Id X L 950) | |
| 13 | 2***8 | Rubber Hose (Thrermostat to Water Valve) | |
| 13 | 2***3 | Rubber Hose (water Valve To Thermostat) | |
| 14 | 2***4 | Hose (For Water Valve To Heater) | |
| 14 | 2***5 | Rubber Hose-(Water Valve To Htr Inlet) | |
| 15 | 2***7 | Hose Clamp-25 | |
| 16 | 2***4 | Assy Fresh Air Valve RHD(without Cable) | |
| 16 | 2***5 | Assy Fresh Air Valve LHD(without Cable) | |
| 21 | 2***5 | Grommet (Discharge Line) | |
| 22 | 2***6 | Grommet (Liquid Line) | |
| 23 | 2***4 | Assy Bracket AC Unit Support On Cross Member | |
| 24 | 2***5 | Assy Bracket (Subros) | |
| 25 | 2***8 | Assy FICD-complete (Subros) | |
| 26 | 2***0 | Actuator (FICD)-(Subros) | |
| 27 | 2***1 | Actuator Bracket (Subros) | |
| 28 | 2***3 | Assy Ac+Heater Unit | |
| 28 | 2***0 | Assy Ac+Heater Unit (Subros) | |
| 29 | 2***5 | Assy Coil Housing Complete | |
| 29 | 2***2 | Assy Coil Housing Complete | |
| 30 | 2***6 | Assy Evaporator - HFC-134a (Subros) | |
| 31 | 2***9 | Assy Thermo Expan Valve (HFC-134a)-Subros | |
| 32 | 2***1 | Thermister Assy(SB 077500-0710) | |
| 33 | 2***7 | Assy Coil Housing (AC)(FRP)-RHD (Sub) | |
| 34 | 2***1 | Pipe Grommet (Coil Housing) | |
| 35 | 2***2 | Clamp (Evp Pipes)(Subros) | |
| 39 | 2***0 | Assy Air Duct -RHD (M/s Subros) | |
| 39 | 2***2 | Assy Air Duct -LHD (M/s Subros) | |
| 40 | 2***7 | Assy Blower Complete (3 Pole Resistor) (Sub)-RHD | |
| 40 | 2***9 | Assy Blower Complete (3 Pole Resistor) (Sub)-LHD | |
| 41 | 2***1 | Assy Blower Housing - LHD | |
| 41 | 2***0 | Assy Blower Housing - RHD | |
| 42 | 2***4 | Fan Blower LHD-(Subros) | |
| 42 | 2***1 | Fan Blower RHD-(Sb 116221-0280) | |
| 43 | 2***0 | Blower Motor-(Sb-162500-557) | |
| 44 | 2***1 | Assy Bracket Blower Mounting-RHD | |
| 44 | 2***2 | Assy Bracket Blower Mounting-LHD | |
| 45 | 2***6 | Resistor With 3-pole Conn (M/s Subros) | |
| 46 | 2***1 | Assy A/c Cable Set (iv) Mssl-RHD Subros | |
| 46 | 2***3 | Assy A/c Cable Set | |
| 47 | 2***5 | Sealing Gasket (Blower To Duct) | |
| 48 | 2***9 | Assy Bracket(Coil Housing To Duct Rear) LH RHD | |
| 48 | 2***2 | Assy Bracket(Coil Housing To Duct Rear) RH LHD | |
| 50 | 2***9 | Assy AC Condenser | |
| 50 | 2***9 | Assy AC Condenser (HFC-134)-Subros | |
| 51 | 2***1 | Assy Bracket-LH (For Indrad Fan On Subros) | |
| 51 | 2***2 | Assy Bracket-RH (For Indrad Fan On Subros) | |
| 52 | 2***2 | Drain Hose With Grommet | |
| 53 | 2***0 | Grommet (For Drain Tube)(Subros). | |
| 54 | 2***0 | Assy Tank R/drier HFC-134 (Subros) | |
| 55 | 2***4 | Assy Bracket(For Receiver Drier Mounting)(Subros) | |
| 55 | 2***4 | Assy Bracket (For Receiver Drier Mounting)(Subros) | |
| 56 | 2***9 | Grommet (Fire Wall To Ac Liq Pipe)(Subros) | |
| 57 | 2***0 | Grommet (Fire Wall To Ac Suc Pipe)(Subros) | |
| 58 | 2***0 | Assy Hose Suction | |
| 58 | 2***9 | Assy Hose Suction (Subros). | |
| 58 | 2***3 | Assy Hose Suction (Subros). | |
| 59 | 2***0 | Assy Tube Liquid (Cond Outlet)-134a | |
| 59 | 2***4 | Assy Tube Liquid (Cond Outlet)-134a | |
| 60 | 2***1 | Assy Tube Liquid(Rd Inlet)- 134a | |
| 60 | 2***7 | Assy Tube Liquid(Rd Inlet)- 134a | |
| 63 | 2***5 | Assy Tube Lq (Rd Outlet-LHD)134a-(Subros). | |
| 63 | 2***4 | Assy Tube Lq (Rd Outlet-RHD)134a-(Subros). | |
| 65 | 2***1 | Assy Hose Discharge | |
| 65 | 2***3 | Assy Hose Discharge- 134a | |
| 67 | 2***4 | Clamp Tube Liquid | |
| 68 | 2***0 | Clamp (Hose Suction) (Subros) | |
| 69 | 2***6 | Assy A/c Cable Set-I | |
| 70 | 2***7 | Assy A/c Cable Set-II | |
| 71 | 2***5 | Assy Vacuum Solenoid Valve | |
| 72 | 2***2 | Vacuum Solenoid Valve With Mounting Bracket | |
| 73 | 2***8 | Vacuum Hose | |
| 75 | 2***9 | Assy Thermoamp W/pot and Mounting Bracket (M/Subros) | |
| 76 | 2***6 | Assy Potentiometer - Subros | |
| 77 | 2***0 | Assy. A/C Compressor {10S11} {Subros} | |
| 78 | 2***2 | Assy.Cond.Fan Unit [Larger]-120W-Indrad |
