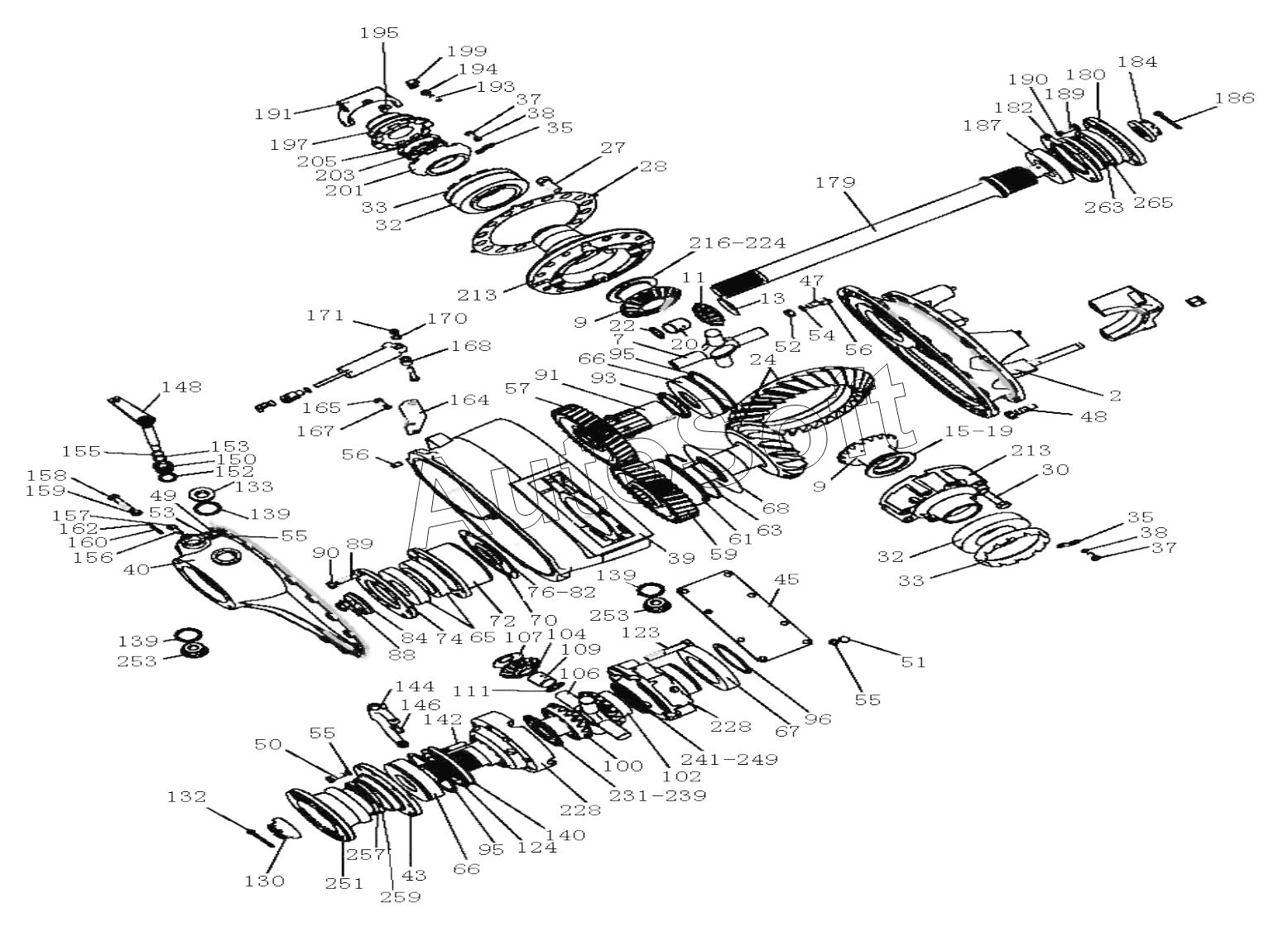

Каталог запасных частей к технике: HOWO Howo A7 8x4. Mid axle drive device(i=5.73,XSП†180,outputXSО¦165,cast axle)
1
2
3
7
8
9
9
10
11
12
13
14
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
35
35
36
37
37
38
38
39
40
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
55
56
56
57
58
59
60
61
62
63
64
65
66
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
95
96
100
101
102
103
104
105
106
107
108
109
110
111
112
123
124
125
130
131
132
133
134
139
139
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
166
167
168
169
170
171
172
174
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
209
211
212
213
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
253
254
255
256
257
258
259
260
261
262
263
264
265
266
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A***5 | Middle axle | |
| 2 | W***0 | Main reducer cover | |
| 3 | W***1 | Main reducer cover | |
| 7 | A***0 | Cross axle | |
| 8 | 1***9 | Molybdenum disulfide | |
| 9 | W***1 | Half axle gear | |
| 10 | W***1 | Half axle gear | |
| 11 | W***2 | Plant gear | |
| 12 | W***1 | Plant gear | |
| 13 | W***3 | Shim | |
| 14 | W***1 | Shim | |
| 20 | W***9 | Shealth | |
| 21 | W***1 | Shealth | |
| 22 | W***0 | Retainer | |
| 23 | W***1 | Retainer | |
| 24 | W***1 | Bevel gear pair | |
| 25 | W***1 | Bevel gear pair | |
| 26 | W***1 | Bevel gear pair | |
| 27 | Q***2 | болт | |
| 28 | W***3 | Фиксатор | |
| 29 | W***1 | Bolt | |
| 30 | W***9 | Hex bolt | |
| 31 | W***1 | Hex bolt | |
| 32 | 1***8 | Роликоподшипник | |
| 33 | W***9 | Differential bearing adjust nut | |
| 34 | W***1 | Differential bearing adjust nut | |
| 35 | W***7 | Brake plate | |
| 36 | W***1 | Brake plate | |
| 37 | Q***6 | болт | |
| 38 | Q***8 | Пружинная шайба | |
| 39 | A***9 | Bridge box | |
| 40 | A***4 | Bridge box | |
| 42 | 1***9 | Заглушка | |
| 43 | W***5 | End plate | |
| 44 | W***1 | End plate | |
| 45 | W***8 | Oil plate assemby | |
| 46 | W***1 | Oil plate assemby | |
| 47 | 1***8 | Шпилька | |
| 48 | Q***3 | Шпилька | |
| 49 | Q***3 | Шпилька | |
| 50 | Q***5 | болт | |
| 51 | Q***Q | болт | |
| 52 | Q***2 | гайка | |
| 53 | Q***0 | гайка | |
| 54 | Q***2 | Пружинная шайба | |
| 55 | Q***0 | Пружинная шайба | |
| 56 | Q***6 | Шпилька | |
| 57 | W***6 | Cylindrical gear | |
| 58 | W***1 | Cylindrical gear | |
| 59 | W***7 | Cylindrical gear | |
| 60 | W***1 | Cylindrical gear | |
| 61 | W***7 | Роликоподшипник | |
| 62 | W***1 | Roller bearing | |
| 63 | W***6 | Retainer | |
| 64 | W***1 | Retainer | |
| 65 | 1***3 | Роликоподшипник | |
| 66 | 1***3 | Шарикоподшипник | |
| 67 | 1***9 | Шарикоподшипник | |
| 68 | W***4 | Grease baffle | |
| 69 | W***1 | Grease baffle | |
| 70 | W***0 | Retainer | |
| 71 | W***1 | Retainer | |
| 72 | W***9 | Bearing base | |
| 73 | W***1 | Bearing base | |
| 74 | W***8 | Bearing plate | |
| 75 | W***1 | Bearing plate | |
| 76 | W***1 | Adjust shim | |
| 77 | W***1 | Adjust shim | |
| 78 | W***2 | Adjust shim | |
| 79 | W***1 | Adjust shim | |
| 80 | W***3 | Adjust shim | |
| 81 | W***1 | Adjust shim | |
| 82 | W***4 | Adjust shim | |
| 83 | W***1 | Adjust shim | |
| 84 | W***8 | Bearing plate | |
| 85 | W***1 | Bearing plate | |
| 86 | W***2 | Locking bolt | |
| 87 | W***1 | Locking bolt | |
| 88 | Q***2 | Hex bolt | |
| 89 | 1***3 | Болт | |
| 90 | Q***0 | Гайка | |
| 91 | W***5 | Hollow axle | |
| 92 | W***1 | Hollow axle | |
| 93 | W***1 | Nut | |
| 94 | W***1 | Nut | |
| 95 | Q***0 | Retainer | |
| 96 | 1***0 | Стопорное кольцо | |
| 100 | W***5 | Front half axle gear | |
| 101 | W***1 | Front half axle gear | |
| 102 | W***6 | Rear half axle gear | |
| 103 | W***1 | Rear half axle gear | |
| 104 | W***7 | Plant gear | |
| 105 | W***1 | Plant gear | |
| 106 | A***3 | Cross axle | |
| 107 | W***4 | Shim | |
| 108 | W***1 | Shim | |
| 109 | W***1 | Shealth | |
| 110 | W***1 | Shealth | |
| 111 | W***2 | Retainer | |
| 112 | W***1 | Retainer | |
| 123 | Q***2 | Hex bolt | |
| 124 | W***1 | Shim | |
| 125 | W***1 | Shim | |
| 130 | W***3 | Nut | |
| 131 | W***1 | Nut | |
| 132 | Q***5 | Шпилька | |
| 133 | W***3 | Plug | |
| 134 | W***1 | Plug | |
| 139 | Q***6 | Прокладка | |
| 140 | W***5 | Differential lock ring | |
| 141 | W***1 | Differential lock ring | |
| 142 | W***6 | Pin | |
| 143 | W***1 | Pin | |
| 144 | W***3 | Shaft fork | |
| 145 | W***1 | Shaft fork | |
| 146 | W***7 | Fork move block | |
| 147 | W***1 | Fork move block | |
| 148 | W***6 | Differential lock rockerarm assemby | |
| 149 | W***1 | Differential lock rockerarm assemby | |
| 150 | W***7 | Shealth | |
| 151 | W***1 | Shealth | |
| 152 | A***8 | O-ring | |
| 153 | W***2 | O-ring | |
| 154 | W***1 | O-ring | |
| 155 | 1***2 | Стопорное кольцо | |
| 156 | 1***0 | Болт | |
| 157 | Q***8 | гайка | |
| 158 | Q***Q | болт | |
| 159 | Q***0 | гайка | |
| 160 | W***8 | Pin | |
| 161 | W***1 | Pin | |
| 162 | Q***5 | Стопорное кольцо | |
| 166 | Q***8 | болт | |
| 167 | Q***8 | Пружинная шайба | |
| 168 | W***2 | Sleeve | |
| 169 | W***1 | Sleeve | |
| 170 | Q***8 | Шайба | |
| 171 | Q***8 | Стопорная гайка | |
| 172 | 1***2 | Seal ring graph | |
| 174 | 1***7 | Seal ring accept graph | |
| 176 | 1***9 | Seal ring accept graph | |
| 177 | W***5 | Sign | |
| 178 | W***1 | Sign | |
| 179 | A***1 | Axle | |
| 180 | W***5 | 165output flange assemby | |
| 181 | W***1 | 165output flange assemby | |
| 182 | W***1 | Bearing base | |
| 183 | W***1 | Bearing base | |
| 184 | W***3 | Flange nut | |
| 185 | W***1 | Nut | |
| 186 | Q***5 | Шпилька | |
| 187 | W***2 | Roller bearing | |
| 188 | W***1 | Roller bearing | |
| 189 | Q***0 | болт | |
| 190 | Q***0 | Пружинная шайба | |
| 191 | W***4 | Shaft fork | |
| 192 | W***1 | Shaft fork | |
| 193 | Q***5 | Болт | |
| 194 | Q***8 | гайка | |
| 195 | W***7 | Fork move block | |
| 196 | W***1 | Fork move block | |
| 197 | W***6 | Slide assemby mesh shealth | |
| 198 | W***1 | Slide assemby mesh shealth | |
| 199 | W***3 | Bend plate | |
| 200 | W***1 | Bend plate | |
| 201 | W***5 | Fasten mesh shealth | |
| 202 | W***1 | Fasten mesh shealth | |
| 203 | W***8 | Shim | |
| 204 | W***1 | Shim | |
| 205 | W***7 | Round nut | |
| 206 | W***1 | Round nut | |
| 207 | 1***3 | Seal ring ask graph | |
| 209 | 1***1 | Seal ring accept graph | |
| 211 | 1***3 | Seal ring accept graph | |
| 212 | 1***9 | Rivet | |
| 213 | W***2 | Differential housing | |
| 214 | W***1 | Differential housing | |
| 215 | W***1 | Differential housing | |
| 216 | W***4 | Adjust shim | |
| 217 | W***1 | Adjust shim | |
| 218 | W***5 | Adjust shim | |
| 219 | W***1 | Adjust shim | |
| 220 | W***6 | Adjust shim | |
| 221 | W***1 | Adjust shim | |
| 222 | W***7 | Adjust shim | |
| 223 | W***1 | Adjust shim | |
| 224 | W***8 | Adjust shim | |
| 225 | W***1 | Adjust shim | |
| 226 | W***0 | Bridge box | |
| 227 | W***1 | Bridge box | |
| 228 | W***1 | Differential housing | |
| 229 | W***1 | Differential housing | |
| 230 | W***1 | Differential housing | |
| 231 | W***1 | Half axle gear gasket | |
| 232 | W***1 | Half axle gear gasket | |
| 233 | W***2 | Half axle gear gasket | |
| 234 | W***1 | Half axle gear gasket | |
| 235 | W***3 | Half axle gear gasket | |
| 236 | W***1 | Half axle gear gasket | |
| 237 | W***4 | Half axle gear gasket | |
| 238 | W***1 | Half axle gear gasket | |
| 239 | W***5 | Half axle gear gasket | |
| 240 | W***1 | Half axle gear gasket | |
| 241 | W***6 | Half axle gear gasket | |
| 242 | W***1 | Half axle gear gasket | |
| 243 | W***7 | Half axle gear gasket | |
| 244 | W***1 | Half axle gear gasket | |
| 245 | W***8 | Half axle gear gasket | |
| 246 | W***1 | Half axle gear gasket | |
| 247 | W***9 | Half axle gear gasket | |
| 248 | W***1 | Half axle gear gasket | |
| 249 | W***0 | Half axle gear gasket | |
| 250 | W***1 | Half axle gear gasket | |
| 251 | W***4 | Flange assemby | |
| 252 | W***1 | Flange assemby | |
| 253 | W***5 | Magnet plug assemby | |
| 254 | W***1 | Magnet plug assemby | |
| 255 | W***2 | Bracket assemby | |
| 256 | W***1 | Bracket assemby | |
| 257 | W***6 | Shaft seal ring | |
| 258 | W***1 | Shaft seal ring | |
| 259 | W***2 | Shaft seal ring | |
| 260 | W***1 | Shaft seal ring | |
| 261 | W***2 | Paper gasket | |
| 262 | W***1 | Paper gasket | |
| 263 | W***6 | Shaft seal ring | |
| 264 | W***1 | Shaft seal ring | |
| 265 | W***2 | Shaft seal ring | |
| 266 | W***1 | Shaft seal ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
