Каталог запасных частей к технике: DongFeng DFL-4251A8-T31R-931-02 (2011). T31R-CA-22 Cab Wiring Harness Group
1
2
3
3
4
5
6
7

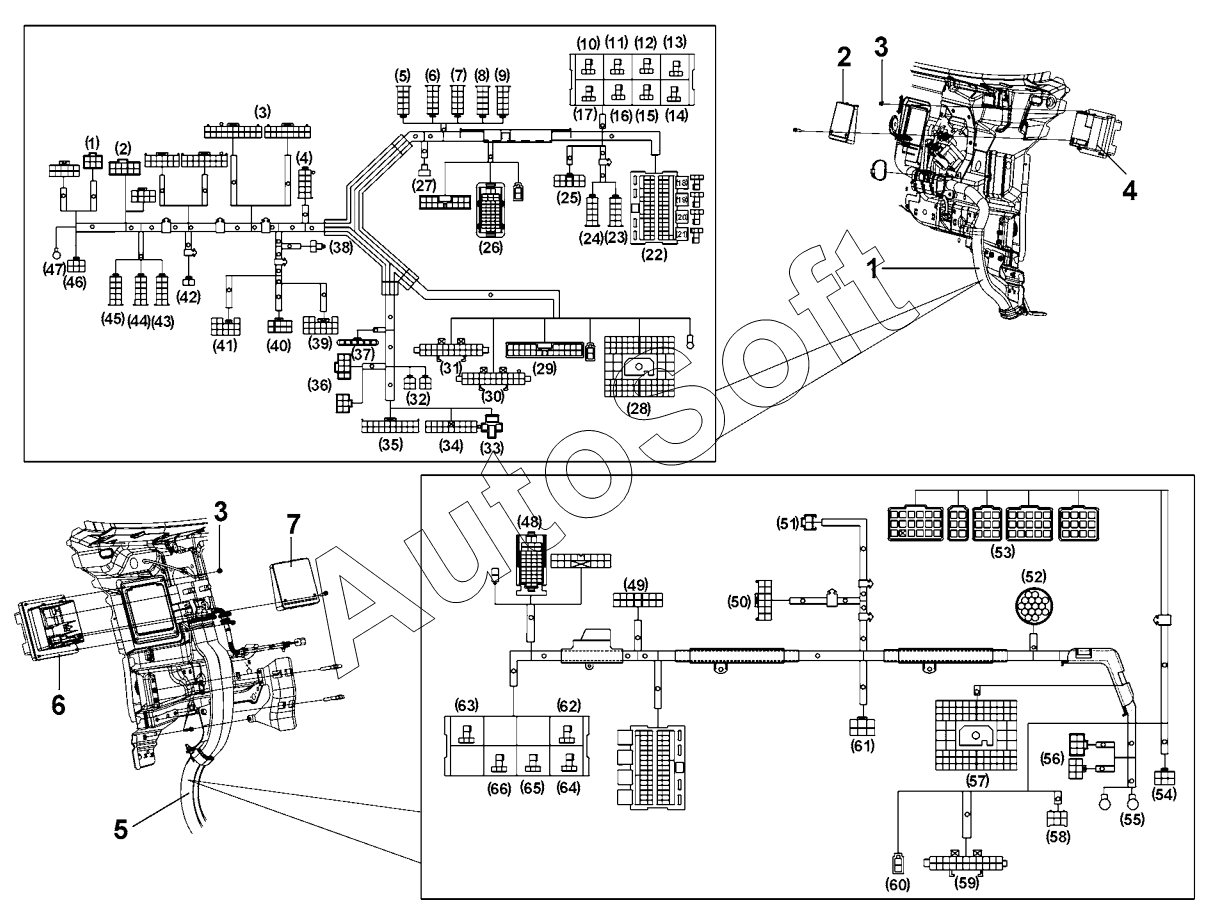

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| (1)- To LH door harness | (***s | (1)- To LH door harness | |
| (10)-To Left turning ground lamp relay(blue) | (***) | (10)-To Left turning ground lamp relay(blue) | |
| (11)-To Right turning ground lamp relay(blue) | (***) | (11)-To Right turning ground lamp relay(blue) | |
| (12)-To ACC relay(blue) | (***) | (12)-To ACC relay(blue) | |
| (13)-To Ignition lock ON relay 2(blue) | (***) | (13)-To Ignition lock ON relay 2(blue) | |
| (14)-To Rear fog lamp switch relay(blue) | (***) | (14)-To Rear fog lamp switch relay(blue) | |
| (15)-To Small lamp relay(blue) | (***) | (15)-To Small lamp relay(blue) | |
| (16)-To Ignition lock ON relay 1(blue) | (***) | (16)-To Ignition lock ON relay 1(blue) | |
| (17)-To Front Fog Lamp relay(blue) | (***) | (17)-To Front Fog Lamp relay(blue) | |
| (18)-To Horns relay | (***y | (18)-To Horns relay | |
| (19)-To High relay | (***y | (19)-To High relay | |
| (2)- To Headlining harness | (***s | (2)- To Headlining harness | |
| (20)-To Dip relay | (***y | (20)-To Dip relay | |
| (21)-To Brake lamp relay | (***y | (21)-To Brake lamp relay | |
| (22)-To Fuse box | (***x | (22)-To Fuse box | |
| (23)-To Axial differential switch(yellow) | (***) | (23)-To Axial differential switch(yellow) | |
| (24)-To Wheel side differential switch(black) | (***) | (24)-To Wheel side differential switch(black) | |
| (25)-To Radio & CD player | (***r | (25)-To Radio & CD player | |
| (26)-To RH body harness | (***s | (26)-To RH body harness | |
| (27)-To Cigar lighter | (***r | (27)-To Cigar lighter | |
| (28)-To Left frame harness | (***s | (28)-To Left frame harness | |
| (29)-To Front wall harness | (***s | (29)-To Front wall harness | |
| (3)-To Combination switch | (***h | (3)-To Combination switch | |
| (30)-To Ground short circuit plug2 | (***2 | (30)-To Ground short circuit plug2 | |
| (31)-To Ground short circuit plug1 | (***1 | (31)-To Ground short circuit plug1 | |
| (32)-To Diode assembly | (***y | (32)-To Diode assembly | |
| (33)-To Fuel preheat relay | (***y | (33)-To Fuel preheat relay | |
| (34)-To Flasher unit(ash) | (***) | (34)-To Flasher unit(ash) | |
| (35)-To Integrated alarm | (***m | (35)-To Integrated alarm | |
| (36)-To Floor upper harness | (***s | (36)-To Floor upper harness | |
| (37)-To Electric accelerator pedal | (***l | (37)-To Electric accelerator pedal | |
| (38)-To Brake lamp switch(blue) | (***) | (38)-To Brake lamp switch(blue) | |
| (39)-To Combination switch(white porcelain) | (***) | (39)-To Combination switch(white porcelain) | |
| (4)-To Hazard warning switch(yellow) | (***) | (4)-To Hazard warning switch(yellow) | |
| (40)-To Ignition lock(blue) | (***) | (40)-To Ignition lock(blue) | |
| (41)-To Combination switch(white porcelain) | (***) | (41)-To Combination switch(white porcelain) | |
| (42)-To Clutch switch(blue) | (***) | (42)-To Clutch switch(blue) | |
| (43)-To Rear fog lamp switch | (***h | (43)-To Rear fog lamp switch | |
| (44)-To Ceiling lamp switch(black) | (***) | (44)-To Ceiling lamp switch(black) | |
| (45)-To Front fog lamp switch | (***h | (45)-To Front fog lamp switch | |
| (46)-To Left lower floor harness(blue) | (***) | (46)-To Left lower floor harness(blue) | |
| (47)-To Ground | (***d | (47)-To Ground | |
| (48)-To LH body harness | (***s | (48)-To LH body harness | |
| (49)-To Wiper intermittent relay | (***y | (49)-To Wiper intermittent relay | |
| (5)-To Preheat switch(brown) | (***) | (5)-To Preheat switch(brown) | |
| (50)-To Multi,function buzzer | (***r | (50)-To Multi,function buzzer | |
| (51)-To Lower harness of RH floor(blue) | (***) | (51)-To Lower harness of RH floor(blue) | |
| (52)-To Electric control system diagnostic interface | (***e | (52)-To Electric control system diagnostic interface | |
| (53)-To ABS control unit | (***t | (53)-To ABS control unit | |
| (54)-To Wiper motor(blue) | (***) | (54)-To Wiper motor(blue) | |
| (55)-To Ground | (***d | (55)-To Ground | |
| (56)-To RH door harness(blue) | (***) | (56)-To RH door harness(blue) | |
| (57)-To Right frame harness | (***s | (57)-To Right frame harness | |
| (58)-To Trailer ABS(red) | (***) | (58)-To Trailer ABS(red) | |
| (59)-To Ground short circuit plug | (***g | (59)-To Ground short circuit plug | |
| (6)-To Switch of air and electric horns(green) | (***) | (6)-To Switch of air and electric horns(green) | |
| (60)-To Frame harness(black) | (***) | (60)-To Frame harness(black) | |
| (61)-To A/C and heater harness(blue) | (***) | (61)-To A/C and heater harness(blue) | |
| (62)-To Reverse lamp relay(blue) | (***) | (62)-To Reverse lamp relay(blue) | |
| (63)-To Brake switch relay(black) | (***) | (63)-To Brake switch relay(black) | |
| (64)-To Compressor accessories relay(blue) | (***) | (64)-To Compressor accessories relay(blue) | |
| (65)-To Heater accessories relay(blue) | (***) | (65)-To Heater accessories relay(blue) | |
| (66)-To Wiper attachment relay(blue) | (***) | (66)-To Wiper attachment relay(blue) | |
| (7)-To Dryer switch(black) | (***) | (7)-To Dryer switch(black) | |
| (8)-To Rear lamp switch(blue) | (***) | (8)-To Rear lamp switch(blue) | |
| (9)-To ABS flashing code diagnosis switch(red) | (***) | (9)-To ABS flashing code diagnosis switch(red) | |
| 10076600 | 1***0 | Band | |
| 10080900 | 1***0 | Harness guard board | |
| 10081000 | 1***0 | Harness guard board | |
| 10081200 | 1***0 | Bracket, ABS diagnostic interface | |
| 10082800 | 1***0 | Clamp,SMJ to fix wiring harness | |
| 10082800 | 1***0 | Clamp,SMJ to fix wiring harness | |
| 10084800 | 1***0 | Band | |
| 10084800 | 1***0 | Band | |
| 10087100 | 1***0 | Relay box | |
| 10087100 | 1***0 | Relay box | |
| 10369300 | 1***0 | Fuse box | |
| 10369300 | 1***0 | Fuse box | |
| 10369700 | 1***0 | Harness guard | |
| 10369800 | 1***0 | Harness guard | |
| Q1840612 | Q***2 | Болт | |
| Q1840612 | Q***2 | Болт | |
| Q1840620-F7 | Q***7 | Bolt | |
| Q1840620-F7 | Q***7 | Bolt | |
| Q32005 | Q***5 | Гайка | |
| Q32006 | Q***6 | Гайка | |
| Q32006 | Q***6 | Гайка | |
| Q32006-F7 | Q***7 | Nut | |
| Q32006-F7 | Q***7 | Nut | |
| Q41106 | Q***6 | Шайба | |
| Q41106 | Q***6 | Шайба | |
| RQ2710312 | R***2 | Винт | |
| 1 | 1***0 | LH body harness assembly | |
| 2 | 1***0 | SMJ box cover, left | |
| 3 | Q***6 | Гайка | |
| 4 | 1***0 | SMJ box, left | |
| 5 | 1***0 | RH body harness assembly | |
| 6 | 1***0 | SMJ box, right | |
| 7 | 1***0 | SMJ box cover, right |
