Каталог запасных частей к технике: Shaanxi Shacman SX32586T384 (X3000). DASHBOARD
40
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
26
41
42
43
44
45
46
47
48
49
50
50
51
52
53
15
1
2
2
2
2
2
2
2
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
1
15
16
17
18
18
19
19
20
21
22
23
24
25
25

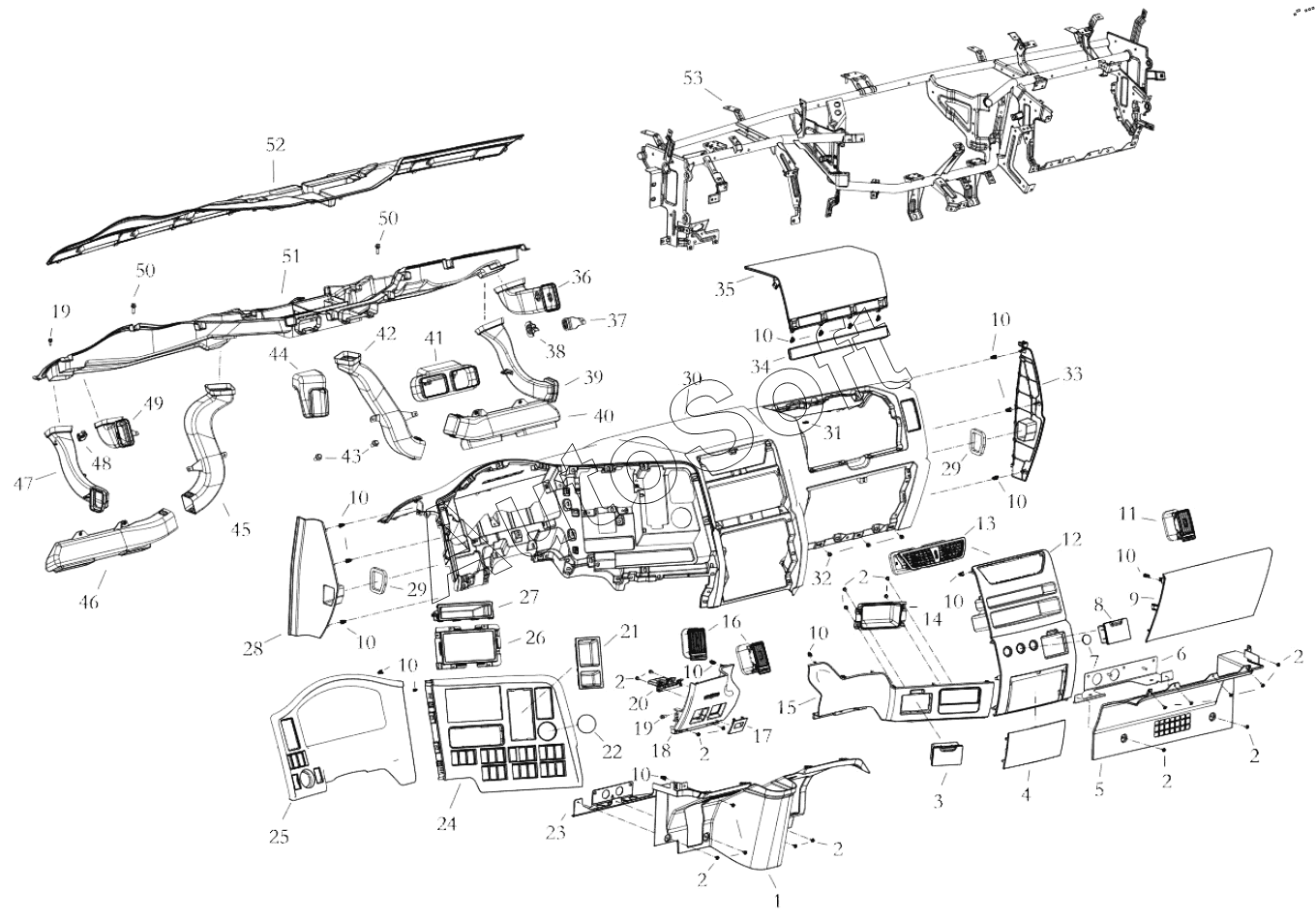

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | D***1 | Lh knee bolster | |
| 1 | D***2 | Lh knee bolster | |
| 2 | D***3 | Self tapping screw | |
| 3 | D***0 | Knee bolster ashtray assy | |
| 4 | D***2 | Floor wiring connecting-peg | |
| 5 | D***0 | Hood | |
| 6 | D***1 | Rh knee bolster | |
| 7 | D***3 | Ip rh lower brace | |
| 8 | D***0 | Cigar lighter trim | |
| 9 | D***1 | Center plate ashtray assy | |
| 10 | D***3 | Ecu maintaince garnish panel | |
| 11 | D***0 | Metal clip | |
| 12 | D***1 | Rh air vent assy | |
| 13 | D***0 | Center plate noumenon | |
| 14 | D***2 | Centre air vent assy | |
| 15 | D***1 | Knee bolster store box | |
| 15 | D***3 | Driver rh knee bolster | |
| 16 | D***0 | Driver rh knee bolster | |
| 17 | D***2 | Driver lh air vent assy | |
| 18 | D***1 | Engine diagnose connecter | |
| 18 | D***4 | Hood | |
| 19 | Q***6 | Driver lh air knee bolster | |
| 20 | D***3 | Driver lh air knee bolster | |
| 21 | D***4 | Hexagonal flange side bolt | |
| 22 | D***2 | Card trim | |
| 23 | D***2 | Driver's side lower hoard mounting bracket | |
| 24 | D***1 | Control panel body | |
| 25 | D***1 | Combination instrument mask body | |
| 25 | D***4 | Combination instrument mask body | |
| 26 | D***2 | Dvd decoration strip | |
| 27 | D***3 | Storage box | |
| 28 | D***1 | Left end plate body | |
| 29 | D***2 | End plate sponge sealing strip | |
| 30 | D***1 | Dashboard body | |
| 30 | D***9 | Dashboard body | |
| 31 | D***7 | Reed nut | |
| 32 | D***6 | Reed nut | |
| 33 | D***1 | Right end plate body | |
| 34 | D***2 | Relay box maintenance cover decorative strip | |
| 35 | D***1 | Relay box maintenance cover body | |
| 36 | D***5 | Right side blowing duct | |
| 37 | D***9 | Right side blowing air duct right bracket | |
| 38 | D***8 | Right side blowing air duct, left bracket | |
| 39 | D***0 | Defrosting duct on the right | |
| 40 | D***0 | Right blowing foot duct | |
| 41 | D***4 | Central blowing air duct | |
| 42 | D***0 | Right foot blowing duct | |
| 43 | Q***0 | Hexagonal flange bolts | |
| 44 | D***3 | Blowing air duct on the right side of the driver | |
| 45 | D***0 | Left blowing foot duct | |
| 46 | D***0 | Left blowing foot duct | |
| 47 | D***0 | Defrosting duct on the left | |
| 48 | D***3 | Blowing air duct bracket on the left side of the driver | |
| 49 | D***2 | Blowing air duct on the left side of the driver | |
| 50 | Q***5 | Hexagon flange bolt | |
| 51 | D***1 | The lower body of the front defrosting duct | |
| 52 | D***2 | Front defrosting duct upper body | |
| 53 | D***0 | Instrument panel mounting beam assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
