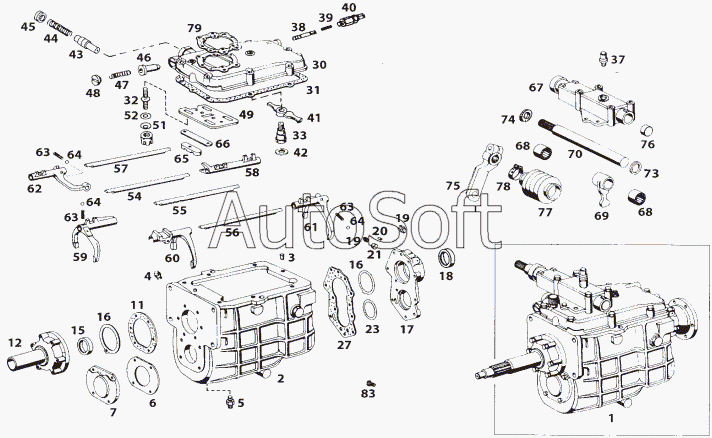

Каталог запасных частей к технике: Tata LP/LPT 613 LHD (2006). GEAR BOX HOUSING
1
1
2
3
4
5
6
7
11
12
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
19
19
20
21
23
23
23
23
23
27
30
31
32
33
37
38
39
40
41
42
43
44
45
46
47
48
49
54
55
56
57
58
59
60
61
62
63
63
63
64
64
64
65
66
67
68
68
69
70
73
74
75
76
77
78
79
83
6
11
27
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2505 2600 01 01 | 2***1 | Gear Box Gasket Kit Consisting of : | |
| 2505 2620 78 03 | 2***3 | Oil Seal | |
| 2505 2625 82 01 | 2***1 | Oil Slinger (Front Cover) | |
| 2505 2640 53 03 | 2***3 | Gasket (For Cover) | |
| 2505 2671 34 03 | 2***3 | Support Piece Check Plate | |
| 2505 2671 34 07 | 2***7 | Stopper Piece Check Plate | |
| 321 261 03 33 | 3***3 | Cover (For PTO Application) | |
| 8854 2605 16 13 | 8***3 | Overhauling Kit - GB 40 consisting of : | |
| Gasket (Front cover Top to GB Housing) | G***) | Gasket (Front cover Top to GB Housing) | |
| Gasket (GB cover Lower to GB Housing) | G***) | Gasket (GB cover Lower to GB Housing) | |
| Gasket (GB cover RR) | G***) | Gasket (GB cover RR) | |
| Gasket (GB Top cover) | G***) | Gasket (GB Top cover) | |
| Hex Collar Nut | H***t | Hex Collar Nut | |
| Hex Nut | H***t | Hex Nut | |
| Oil Seal | O***l | Oil Seal | |
| Oil Seal (Front Cover) | O***) | Oil Seal (Front Cover) | |
| Pin Main Shaft | P***t | Pin Main Shaft | |
| Pressure Spring | P***g | Pressure Spring | |
| Shim 0.05 mm Thick | S***k | Shim 0.05 mm Thick | |
| Shim 0.10 mm Thick | S***k | Shim 0.10 mm Thick | |
| Shim 0.20 mm Thick | S***k | Shim 0.20 mm Thick | |
| Shim 0.40 mm Thick | S***k | Shim 0.40 mm Thick | |
| Shim 0.80 mm Thick | S***k | Shim 0.80 mm Thick | |
| 1 | 2***4 | Assy. GBS - 40 - 5 / 6.34 6 BCF, Full Remote LHD | |
| 1 | 2***0 | Assy. GBS - 40 - 5 / 6.34 8 BCF PTO provision, Full Remote LHD | |
| 2 | 2***2 | Gear Box Housing (6.34 Ratio) | |
| 3 | 1***9 | Cylindrical Pin 10 H 8x20 | |
| 4 | 0***J | Plug Oil Filling | |
| 5 | 2***3 | Magnetic Drain Plug (Hex head type) | |
| 6 | 2***1 | Gasket | |
| 6 | G***r | Gasket Front Cover Lower | |
| 7 | 2***1 | Front Cover Lower | |
| 11 | 2***1 | Gasket (Fr. Cover Top to Hsg.) | |
| 11 | G***r | Gasket Front CoverUpper | |
| 12 | 2***1 | Gear Box Housing Cover Front Top | |
| 15 | 2***8 | Oil Seal | |
| 16 | 2***1 | Butting Ring 2.95 mm Thick | |
| 16 | 2***2 | Butting Ring 3.05 mm Thick | |
| 16 | 2***3 | Butting Ring 3.15 mm Thick | |
| 16 | 2***4 | Butting Ring 3.25 mm Thick | |
| 16 | 2***5 | Butting Ring 3.35 mm Thick | |
| 16 | 2***6 | Butting Ring 3.45 mm Thick | |
| 16 | 2***1 | Butting Ring 2.90 mm Thick | |
| 16 | 2***2 | Butting Ring 3.00 mm Thick | |
| 16 | 2***3 | Butting Ring 3.10 mm Thick | |
| 16 | 2***4 | Butting Ring 3.20 mm Thick | |
| 16 | 2***5 | Butting Ring 3.30 mm Thick | |
| 16 | 2***6 | Butting Ring 3.40 mm Thick | |
| 16 | 2***7 | Butting Ring 3.50 mm Thick | |
| 16 | 2***8 | Butting Ring 3.60 mm Thick | |
| 17 | 2***1 | Gear Case Cover Rear | |
| 19 | 3***1 | Adaptor | |
| 20 | 3***6 | Assy. Threaded Bush | |
| 21 | 1***5 | Plug Speedo Drive | |
| 23 | 3***2 | Shim 0.1 mm Thick | |
| 23 | 3***2 | Shim 0.2 mm Thick | |
| 23 | 3***2 | Shim 0.4 mm Thick | |
| 23 | 3***2 | Shim 0.05 mm Thick | |
| 23 | 3***2 | Shim 0.8 mm Thick | |
| 27 | 3***0 | Gasket (Gear Case Cover Rear) | |
| 27 | G***r | Gasket Rear Cover | |
| 30 | 2***5 | Gear Case Cover Top (Lower Half) | |
| 31 | 2***1 | Gasket | |
| 31 | G***r | Gasket Top Cover | |
| 32 | 2***1 | Stud | |
| 33 | 2***1 | Pin Swing Lever | |
| 37 | 2***2 | Pressure relief Valve | |
| 38 | 2***1 | Thrust Pin (Reverse Indicator Switch) | |
| 39 | 3***1 | Pressure Spring (Reverse Indicator Switch) | |
| 40 | 2***4 | Reverse Indicator Switch | |
| 41 | 2***5 | Swing Lever - 1st Speed | |
| 42 | 2***1 | Washer (Swing Lever) | |
| 43 | 2***9 | Pressure Piece for Check Plate | |
| 44 | 2***2 | Pressure Spring for Pressure Piece | |
| 45 | 3***3 | Slotted Plug | |
| 46 | 2***0 | Interlocking Pin | |
| 47 | 3***1 | Pressure Spring for Interlocking Pin | |
| 48 | 1***1 | Sealing Plug M 24x1.5 | |
| 49 | 3***6 | Assy. Check Plate | |
| 54 | 3***5 | Selector Shaft for First Speed | |
| 55 | 3***5 | Selector Shaft (2/3) | |
| 56 | 3***5 | Selector Shaft (4/5) | |
| 57 | 3***5 | Selector Shaft (For Reverse Gear) | |
| 58 | 3***3 | Gear Shift Dog (For First Gear) | |
| 59 | 3***2 | Selector Fork (2/3) | |
| 60 | 2***2 | Selector Fork (4/5) | |
| 61 | 3***1 | Selector Fork (For 1st Speed Gear) | |
| 62 | 2***1 | Selector Fork (For Reverse Gear) | |
| 63 | 3***1 | Pressure Spring | |
| 64 | 1***2 | Steel Ball 11 mm dia. | |
| 65 | 3***6 | Clamp (Selector Shaft to Gear Box Housing) | |
| 66 | 3***2 | Locking Plate (Selector Shaft to Gear Box Housing) | |
| 67 | 2***6 | Cover Top (Upper Half) | |
| 68 | 2***5 | Needle Bearing | |
| 69 | 2***4 | Shifter Finger | |
| 70 | 2***9 | Selector & Shifter Shaft | |
| 73 | 1***8 | Oil Seal | |
| 74 | 2***3 | Scraper Ring | |
| 75 | 2***3 | Shifting Lever | |
| 76 | 2***2 | Cap | |
| 77 | 2***1 | Bellow | |
| 78 | 1***1 | Hose Clip 25 | |
| 79 | 2***1 | Gasket (Between Upper & Lower Half) | |
| 83 | 3***9 | Sliding Key |
