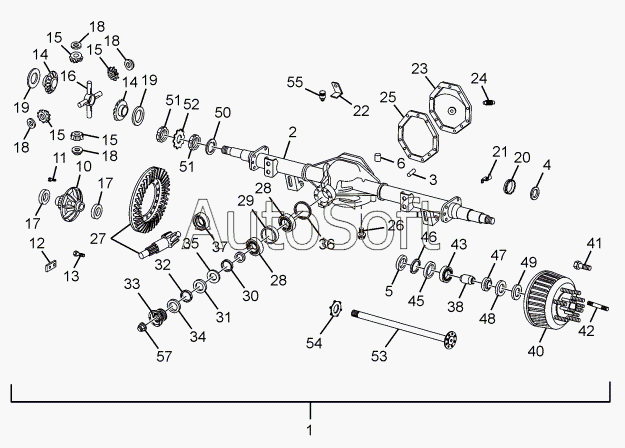

Каталог запасных частей к технике: Tata SFC 407 LHD Euro II (2009). REAR AXLE(SINGLE TYPE)
1
2
3
4
5
6
10
11
12
13
17
17
18
19
19
19
19
19
19
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
57
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
36
36
36
36
36
36
36
36
37
38
40
41
42
43
45
46
47
48
49
50
50
51
51
52
53
54
55
14
14
15
15
15
15
16
18
18
18
18
19
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 265135308001 | 2***1 | HEX SCREW (CROWN WHEEL) | |
| 266535300104 | 2***4 | DIFFERENTIAL GEAR KIT WITH SPIDER, CONSISTING OF : | |
| 1 | 2***4 | ASSY. RA COMP. WITH BRK. AND HAND BRAKE CABLE | |
| 2 | 2***6 | ASSY.R.A.HSG. WITH SUPPORTING TUBE | |
| 3 | 2***1 | THREADED PLUG | |
| 4 | 2***2 | SLINGER | |
| 5 | 2***2 | PRESSURE RING | |
| 6 | 2***1 | CYLINDRICAL PIN | |
| 10 | 2***1 | DIFFERENTIAL HOUSING ASSY. | |
| 11 | 2***2 | HEX. COLLAR BOLT DIFFERENTIAL | |
| 12 | 2***1 | LOCKING PLATE DIFFERENTIAL | |
| 13 | 2***1 | HEX SCREW (CROWN WHEEL) | |
| 14 | R***R | REAR AXLE SHAFT GEAR | |
| 15 | D***N | DIFFERENTIAL BEVEL PINION | |
| 16 | D***R | DIFFERNTIAL SPIDER | |
| 17 | 2***2 | TAPER ROLLER BEARING DIFFERENTIAL | |
| 18 | 2***0 | SPHERICAL WASHER | |
| 18 | S***R | SPHERICAL WASHER | |
| 19 | 2***2 | THRUST WASHER 1.25 THICK | |
| 19 | 2***3 | THRUST WASHER 1.30 THICK | |
| 19 | 2***4 | THRUST WASHER 1.35 THICK | |
| 19 | 2***5 | THRUST WASHER 1.40 THICK | |
| 19 | 2***6 | THRUST WASHER 1.45 THICK | |
| 19 | 2***7 | THRUST WASHER 1.50 THICK | |
| 19 | 2***8 | THRUST WASHER 1.55 THICK | |
| 19 | T***R | THRUST WASHER | |
| 20 | 2***2 | THREADED RING DIFFERENTIAL | |
| 21 | 2***2 | LOCKING PLATE | |
| 22 | 3***1 | LOCKING PLATE | |
| 23 | 2***2 | ASSY. REAR COVER | |
| 24 | 9***6 | SCREW PLUG OIL FILLING | |
| 25 | 2***1 | GASKET REAR COVER | |
| 26 | 2***3 | MAGNETIC DRAIN PLUG (HEX HEAD TYPE) | |
| 27 | 2***2 | ASSY. CROWN WHEEL AND PINION 35/9 | |
| 28 | 2***2 | TAPER ROLLER BEARING TAIL PINION | |
| 29 | 2***2 | SPACER BET HYP. PINION BEARING | |
| 30 | 2***1 | SPACER BET FLANGE | |
| 31 | 2***1 | THREADED RING TAIL PINION | |
| 32 | 2***1 | OIL SEAL | |
| 33 | 2***1 | ASSY. COUPLING FLANGE | |
| 34 | 2***1 | DUST COVER | |
| 35 | 2***4 | SPACER RING TAIL PINION 7.56 THICK | |
| 35 | 2***5 | SPACER RING TAIL PINION 7.54 THICK | |
| 35 | 2***7 | SPACER RING TAIL PINION 7.50 THICK | |
| 35 | 2***8 | SPACER RING TAIL PINION 7.48 THICK | |
| 35 | 2***0 | SPACER RING TAIL PINION 7.44 THICK | |
| 35 | 2***1 | SPACER RING TAIL PINION 7.42 THICK | |
| 35 | 2***2 | SPACER RING TAIL PINION 7.40 THICK | |
| 35 | 2***3 | SPACER RING TAIL PINION 7.38 THICK | |
| 35 | 2***4 | SPACER RING TAIL PINION 7.36 THICK | |
| 35 | 2***5 | SPACER RING TAIL PINION 7.34 THICK | |
| 35 | 2***6 | SPACER RING TAIL PINION 7.32 THICK | |
| 35 | 2***0 | SPACER RING TAIL PINION 7.60 THICK | |
| 35 | 2***1 | SPACER RING TAIL PINION 7.70 THICK | |
| 35 | 2***3 | SPACER RING TAIL PINION 7.90 THICK | |
| 35 | 2***6 | SPACER RING TAIL PINION 7.72 THICK | |
| 35 | 2***7 | SPACER RING TAIL PINION 7.74 THICK | |
| 35 | 2***8 | SPACER RING TAIL PINION 7.76 THICK | |
| 35 | 2***0 | SPACER RING TAIL PINION 7.82 THICK | |
| 35 | 2***1 | SPACER RING TAIL PINION 7.84 THICK | |
| 35 | 2***2 | SPACER RING TAIL PINION 7.86 THICK | |
| 35 | 2***3 | SPACER RING TAIL PINION 7.88 THICK | |
| 35 | 2***4 | SPACER RING TAIL PINION 7.58 THICK | |
| 35 | 2***5 | SPACER RING TAIL PINION 7.62 THICK | |
| 35 | 2***6 | SPACER RING TAIL PINION 7.64 THICK | |
| 35 | 2***7 | SPACER RING TAIL PINION 7.66 THICK | |
| 35 | 2***8 | SPACER RING TAIL PINION 7.68 THICK | |
| 35 | 2***9 | SPACER RING TAIL PINION 7.92 THICK | |
| 35 | 2***0 | SPACER RING TAIL PINION 7.94 THICK | |
| 35 | 2***1 | SPACER RING TAIL PINION 7.96 THICK | |
| 35 | 2***2 | SPACER RING TAIL PINION 7.98 THICK | |
| 35 | 2***3 | SPACER RING TAIL PINION 8.00 THICK | |
| 35 | 2***4 | SPACER RING TAIL PINION 8.02 THICK | |
| 35 | 2***5 | SPACER RING TAIL PINION 8.10 THICK | |
| 35 | 2***6 | SPACER RING TAIL PINION 8.20 THICK | |
| 36 | 2***3 | SHIM 0.10 THICK | |
| 36 | 2***4 | SHIM 0.15 THICK | |
| 36 | 2***5 | SHIM 0.20 THICK | |
| 36 | 2***6 | SHIM 0.25 THICK | |
| 36 | 2***7 | SHIM 0.50 THICK | |
| 36 | 2***8 | SHIM 1.50 THICK | |
| 36 | 2***9 | SHIM 0.30 THICK | |
| 36 | 2***0 | SHIM 0.45 THICK | |
| 37 | 2***3 | CYLINDRICAL ROLLER BEARING TAIL PINION | |
| 38 | 2***1 | SPACER TUBE (BETWEEN HUB BEARING) | |
| 40 | 2***1 | REAR BRAKE DRUM WITH HUB | |
| 41 | 2***3 | WHEEL MOUNTING PIN | |
| 42 | 2***1 | STUD M16 | |
| 43 | 2***1 | TAPER ROLLER BEARING | |
| 45 | 2***2 | SPACER BET OIL SEAL AND INNER BEARING | |
| 46 | 2***1 | OIL SEAL HUB INNER | |
| 47 | 2***8 | TAPER ROLLER BEARING HUB OUTER | |
| 48 | 2***3 | SPACER OIL SEAL AND OUTER BEARING | |
| 49 | 2***2 | OIL SEAL HUB OUTER | |
| 50 | 2***1 | SPACER BETWEEN OUTER BEARING AND LOCKING RING | |
| 50 | 2***5 | SPACER BETWEEN OUTER BEARING AND LOCKING RING | |
| 51 | 2***1 | LOCKING RING | |
| 52 | 2***1 | GASKET | |
| 53 | 2***2 | REAR AXLE SHAFT | |
| 54 | 2***1 | GASKET | |
| 55 | 2***2 | PRESSURE RELIEF VALVE | |
| 57 | 2***2 | HEX. NUT (M 26X1.5) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
