Каталог запасных частей к технике: King Long XMQ-6905AY. 24-DF-0079 Rear axle main reducer
1
2
3
4
5
6
7
8
9
10
32
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
15
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
24
24
25
26
33
27
28
29
30
31
34

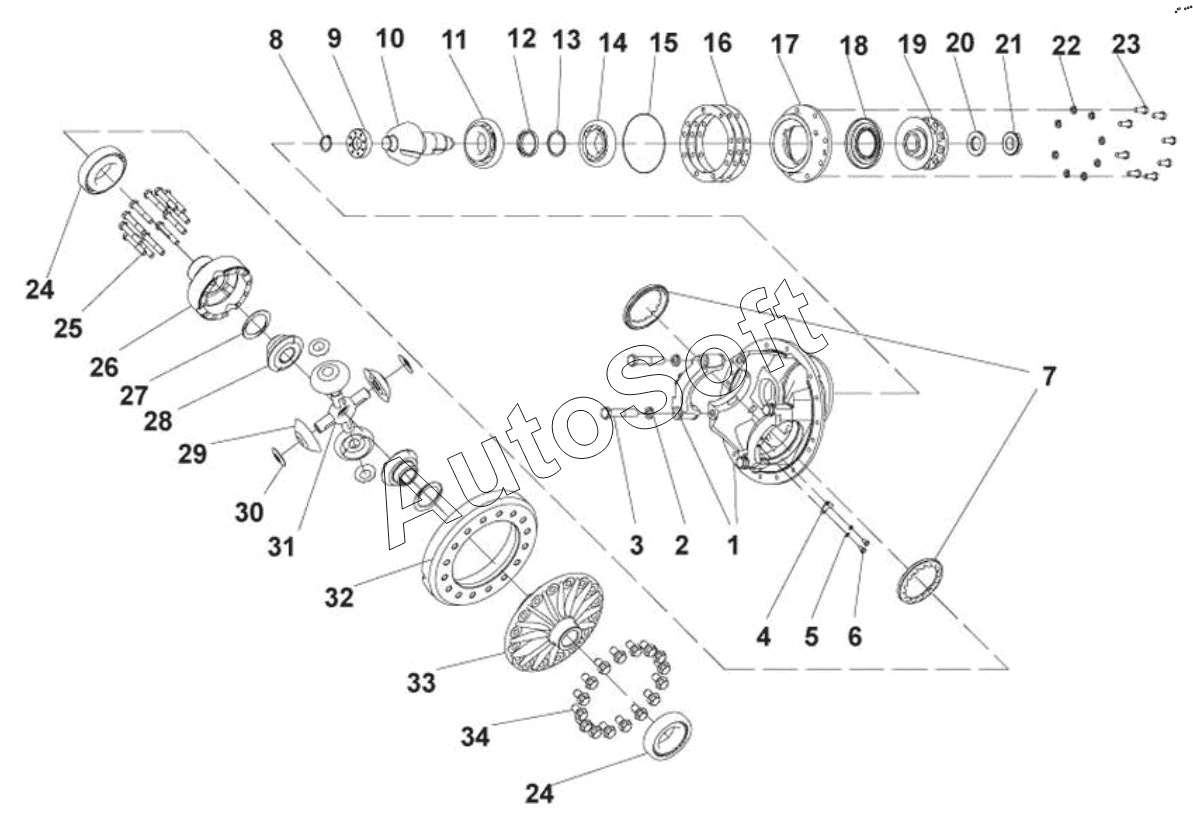

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 224000913 | 2***3 | Main reducer assembly | |
| 1 | 2***5 | Reducer housing and bearing cover assembly | |
| 2 | H***s | Heavy duty spring washers | |
| 3 | B***p | Bolt-differential bearing cap | |
| 4 | 2***0 | Locking plate-adjusting nut | |
| 5 | 2***4 | Washer | |
| 6 | 2***9 | Bolt | |
| 7 | 2***9 | Adjustment nut-differential bearing | |
| 8 | 2***8 | Flat Washers | |
| 9 | 2***0 | Guide bearing | |
| 10 | 2***2 | Master and driven bevel gear | |
| 11 | 2***8 | Main cone rear bearing | |
| 12 | 2***7 | Spacer-drive bevel gear front bearing | |
| 13 | 2***9 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***0 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***1 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***2 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***3 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***4 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***5 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***6 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***7 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***8 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***9 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***0 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***1 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***2 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***3 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***4 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***5 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***6 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***7 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***8 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***9 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***0 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***1 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***2 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***3 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***4 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***5 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***6 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***7 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***8 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***9 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***0 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***1 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***2 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***3 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***4 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***5 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***6 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***7 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***8 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***9 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***0 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***1 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***2 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***3 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***4 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***5 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***6 | Adjustment shim-drive bevel gear front bearing | |
| 13 | 2***7 | Adjustment shim-drive bevel gear front bearing | |
| 14 | 2***9 | Main cone front bearing | |
| 15 | 2***2 | O-ring | |
| 16 | 2***7 | Adjustment shim-drive bevel gear | |
| 16 | 2***8 | Adjustment shim-drive bevel gear | |
| 16 | 2***9 | Adjustment shim-drive bevel gear | |
| 16 | 2***0 | Adjustment shim-drive bevel gear | |
| 16 | 2***1 | Adjustment shim-drive bevel gear | |
| 16 | 2***2 | Adjustment shim-drive bevel gear | |
| 16 | 2***3 | Adjustment shim-drive bevel gear | |
| 16 | 2***4 | Adjustment shim-drive bevel gear | |
| 17 | 2***3 | Bearing seat - driving bevel gear | |
| 18 | 2***1 | Oil seal | |
| 19 | 2***1 | Flange assembly | |
| 20 | 2***7 | Washer-Drive Bevel Gear Nut | |
| 21 | 2***3 | Hex nuts | |
| 22 | 2***2 | Washer | |
| 23 | 2***1 | Hexagon head bolts | |
| 24 | 2***1 | Differential bearings | |
| 25 | 2***8 | Hexagonal flange bolts | |
| 26 | 2***7 | Differential case assembly | |
| 27 | 2***3 | Side gear gasket | |
| 28 | 2***2 | Side gear | |
| 29 | 2***4 | Planetary gear | |
| 30 | 2***5 | Planetary gear spacer | |
| 31 | 2***1 | Cross shaft | |
| 32 | 2***2 | Master and driven bevel gear | |
| 33 | 2***7 | Differential case assembly | |
| 34 | 2***9 | Lock bolt |
