Каталог запасных частей к технике: Golden Dragon XML6125CN-3150244 (2015). REAR AXLE ASSY
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
31
31
31
31
32
33
34
35
36
36
37
37
38
38
39
39
40
41
42
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
44
45
46
46
47
48
49
50
51
52
53
53
54
54
54
55
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
78
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
80
81
82
83
84
85
86

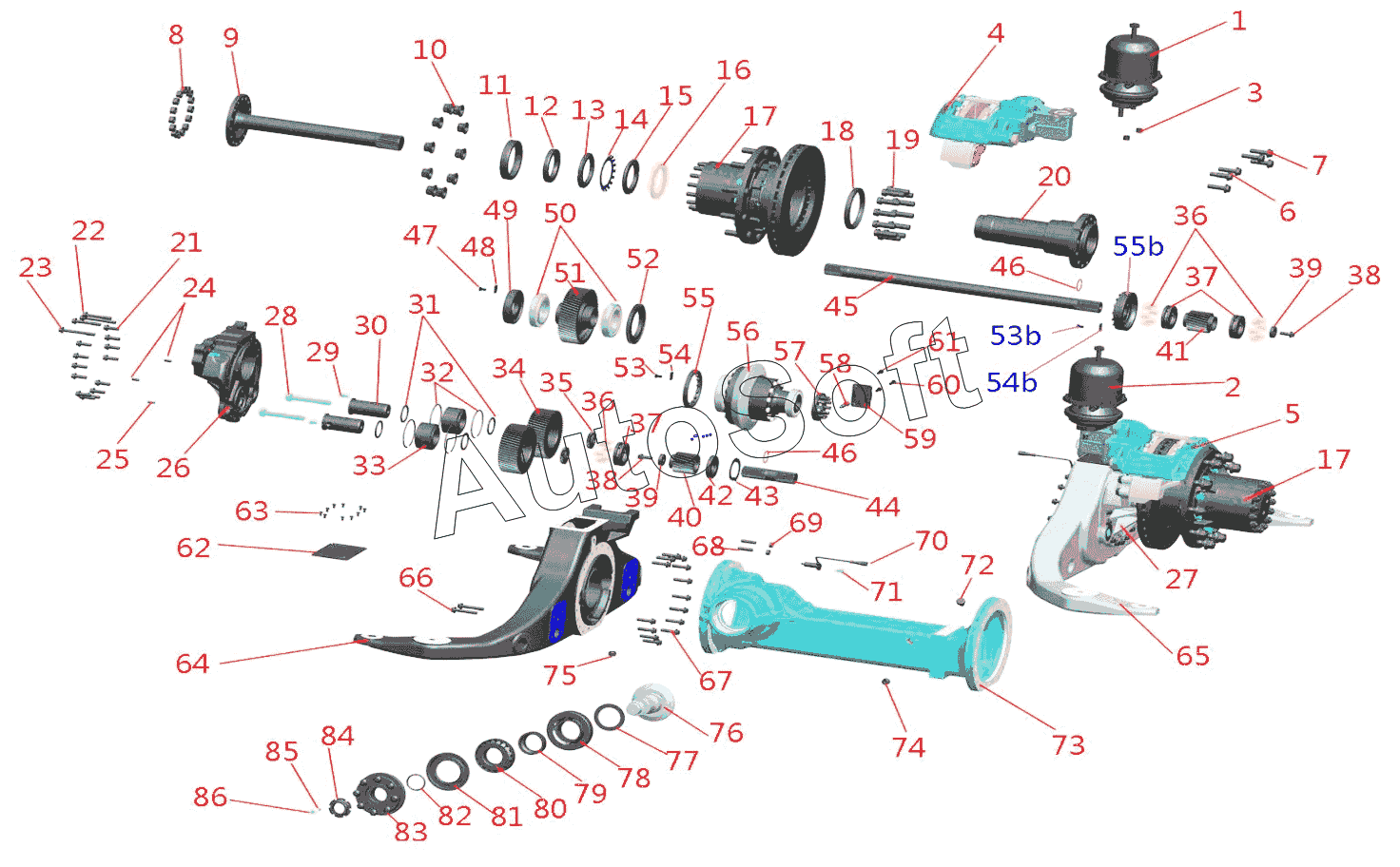

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 24ZDS01A-080 | 2***0 | Pipe joint | |
| 1 | 3***K | Spring brake chamber assy | |
| 2 | 3***K | Spring brake chamber assy | |
| 3 | 8***9 | Locking nut, used to fixeding brake chamber assy | |
| 4 | 3***K | Left disc brake assy | |
| 5 | 3***K | Right disc brake assy | |
| 6 | 7***7 | Locking bolt, used to fixeding disc brake assy | |
| 7 | 7***6 | Hex flange bolt, used to fixeding disc brake assy | |
| 7 | 7***6 | Hex flange bolt, used to fixeding disc brake assy | |
| 8 | M***5 | Hex flange bolt | |
| 9 | B***3 | Axle drive shaft | |
| 10 | 5***5 | Wheel nut | |
| 11 | B***4 | Rear hub outer oil sealing seat | |
| 12 | 1***6 | Rear hub outer oil sealing assy | |
| 13 | B***6 | Rear hub outer bearing adjusting nut | |
| 14 | M***0 | Lock plate | |
| 15 | B***6 | Rear hub outer bearing adjusting nut | |
| 16 | B***6 | Lock plate | |
| 18 | B***6 | Rear hub inner oil sealing assy | |
| 19 | 1***5 | Hex flange bolt, used to fixeding hub shaft tube | |
| 20 | B***1 | Hub shaft tube | |
| 21 | 5***4 | Bolt, used to fixeding brake plate | |
| 22 | B***5 | Hex flange bolt, used to fixeding brake plate | |
| 23 | B***2 | Hex flange bolt, used to fixeding brake plate | |
| 24 | Q***4 | Spring pin | |
| 25 | Q***4 | Locating pin | |
| 26 | 3***K | Left brake plate | |
| 27 | 3***K | Right brake plate | |
| 28 | B***8 | Bolt | |
| 29 | Q***4 | Screw | |
| 30 | B***5 | Idler pulley shaft | |
| 31 | B***1 | Adjust shim | |
| 31 | B***2 | Adjust shim | |
| 31 | B***3 | Adjust shim | |
| 31 | B***4 | Adjust shim | |
| 31 | B***5 | Adjust shim | |
| 31 | B***6 | Adjust shim | |
| 31 | B***7 | Adjust shim | |
| 32 | S***0 | Elastic ring | |
| 33 | 2***A | Double row tapered roller bearing | |
| 34 | B***4 | Idler pulley | |
| 35 | 1***6 | Baffle block | |
| 36 | 1***8 | Compression spring | |
| 37 | 2***A | Thrust bearing | |
| 38 | B***3 | Hex flange bolt, used to fixeding half shaft | |
| 39 | B***1 | Link stopper | |
| 40 | B***2 | Left drive cylindrical gear | |
| 41 | B***1 | Right drive cylindrical gear | |
| 42 | B***5 | Left differential case retaining ring | |
| 43 | B***5 | Thrust washer | |
| 43 | B***6 | Thrust washer | |
| 43 | B***7 | Thrust washer | |
| 43 | B***8 | Thrust washer | |
| 43 | B***9 | Thrust washer | |
| 43 | B***0 | Thrust washer | |
| 43 | B***1 | Thrust washer | |
| 43 | B***2 | Thrust washer | |
| 43 | B***3 | Thrust washer | |
| 43 | B***4 | Thrust washer | |
| 43 | B***5 | Thrust washer | |
| 43 | B***6 | Thrust washer | |
| 43 | B***7 | Thrust washer | |
| 43 | B***8 | Thrust washer | |
| 43 | B***5 | Thrust washer | |
| 43 | B***6 | Thrust washer | |
| 43 | B***7 | Thrust washer | |
| 43 | B***8 | Thrust washer | |
| 43 | B***9 | Thrust washer | |
| 43 | B***0 | Thrust washer | |
| 43 | B***1 | Thrust washer | |
| 43 | B***2 | Thrust washer | |
| 43 | B***3 | Thrust washer | |
| 43 | B***4 | Thrust washer | |
| 43 | B***5 | Thrust washer | |
| 44 | B***3 | Short half shaft | |
| 45 | B***5 | Long half shaft | |
| 46 | Q***5 | Snap ring | |
| 47 | Q***1 | Hexagonal bolt | |
| 48 | 1***5 | Lock plate | |
| 49 | 1***2 | Passive cylindrical gear dearing adjusting nut | |
| 50 | 2***A | Tapered roller bearing | |
| 51 | B***5 | Passive cylindrical gear | |
| 52 | B***8 | Abs sensor gear ring | |
| 53 | Q***1 | Hexagonal bolt | |
| 53 | Q***1 | Hexagonal bolt | |
| 54 | 1***5 | Lock plate | |
| 54 | B***6 | Lock plate | |
| 54 | B***7 | Lock plate | |
| 55 | 1***2 | Adjusting nut-right cylindrical gear dearing | |
| 55 | B***2 | Left differential case dearing adjusting nut | |
| 56 | 2***E | Ring gear and differential assembly | |
| 57 | B***2 | Right differential case dearing adjusting nut | |
| 58 | B***9 | Adjusting nut locking bolt | |
| 59 | 1***5 | Sealing cover plate | |
| 60 | Q***1 | Hexagonal bolt | |
| 61 | Q***1 | Hexagonal bolt | |
| 62 | B***3 | Cover plate | |
| 63 | Q***2 | Cross countersunk head screw | |
| 64 | B***1 | Left c type arm | |
| 65 | B***1 | Right c type arm | |
| 66 | B***6 | Hex flange bolt, used to fixeding c type arm | |
| 67 | 1***8 | Hex flange bolt, used to fixeding c type arm | |
| 68 | 1***4 | Stud bolt, used to fixeding c type arm | |
| 69 | Q***1 | Hexagonal nut | |
| 70 | 3***E | Abs sensor assy | |
| 71 | Q***4 | Screw | |
| 72 | 5***1 | Air breather plug assy | |
| 73 | 2***E | Axle housing | |
| 74 | 5***5 | Oil drain plug | |
| 75 | 5***5 | Oil drain plug | |
| 76 | M***8 | Drive pinion | |
| 77 | B***2 | Adjust shim | |
| 77 | B***3 | Adjust shim | |
| 77 | B***4 | Adjust shim | |
| 77 | B***5 | Adjust shim | |
| 77 | B***6 | Adjust shim | |
| 77 | B***7 | Adjust shim | |
| 77 | B***8 | Adjust shim | |
| 77 | B***9 | Adjust shim | |
| 77 | B***0 | Adjust shim | |
| 77 | B***1 | Adjust shim | |
| 77 | B***2 | Adjust shim | |
| 77 | B***3 | Adjust shim | |
| 77 | B***4 | Adjust shim | |
| 77 | B***5 | Adjust shim | |
| 77 | B***6 | Adjust shim | |
| 77 | B***7 | Adjust shim | |
| 77 | B***8 | Adjust shim | |
| 77 | B***9 | Adjust shim | |
| 77 | B***0 | Adjust shim | |
| 77 | B***1 | Adjust shim | |
| 77 | B***2 | Adjust shim | |
| 77 | B***3 | Adjust shim | |
| 77 | B***4 | Adjust shim | |
| 77 | B***5 | Adjust shim | |
| 77 | B***6 | Adjust shim | |
| 78 | 2***A | Tapered roller bearing | |
| 79 | B***6 | Adjust spacer | |
| 79 | B***7 | Adjust spacer | |
| 79 | B***8 | Adjust spacer | |
| 79 | B***9 | Adjust spacer | |
| 79 | B***0 | Adjust spacer | |
| 79 | B***1 | Adjust spacer | |
| 79 | B***2 | Adjust spacer | |
| 79 | B***3 | Adjust spacer | |
| 79 | B***4 | Adjust spacer | |
| 79 | B***5 | Adjust spacer | |
| 79 | B***6 | Adjust spacer | |
| 79 | B***7 | Adjust spacer | |
| 79 | B***8 | Adjust spacer | |
| 79 | B***9 | Adjust spacer | |
| 79 | B***0 | Adjust spacer | |
| 79 | B***1 | Adjust spacer | |
| 79 | B***2 | Adjust spacer | |
| 79 | B***3 | Adjust spacer | |
| 79 | B***4 | Adjust spacer | |
| 79 | B***5 | Adjust spacer | |
| 79 | B***6 | Adjust spacer | |
| 79 | B***7 | Adjust spacer | |
| 79 | B***8 | Adjust spacer | |
| 79 | B***9 | Adjust spacer | |
| 79 | B***0 | Adjust spacer | |
| 79 | B***1 | Adjust spacer | |
| 79 | B***2 | Adjust spacer | |
| 79 | B***3 | Adjust spacer | |
| 79 | B***4 | Adjust spacer | |
| 79 | B***5 | Adjust spacer | |
| 79 | B***6 | Adjust spacer | |
| 79 | B***7 | Adjust spacer | |
| 79 | B***8 | Adjust spacer | |
| 80 | 2***A | Tapered roller bearing | |
| 81 | 2***K | Dive pinion oil seal | |
| 82 | S***2 | O type sealing ring | |
| 83 | B***1 | Flange and dust cover assy | |
| 84 | H***2 | Drive pinion bearing adjusting nut | |
| 85 | Q***5 | Washer | |
| 86 | Q***0 | Bolt |
