Каталог запасных частей к технике: Lemken Solitair 9/500KA (2009). Solitair 9/500 KA > 263550
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

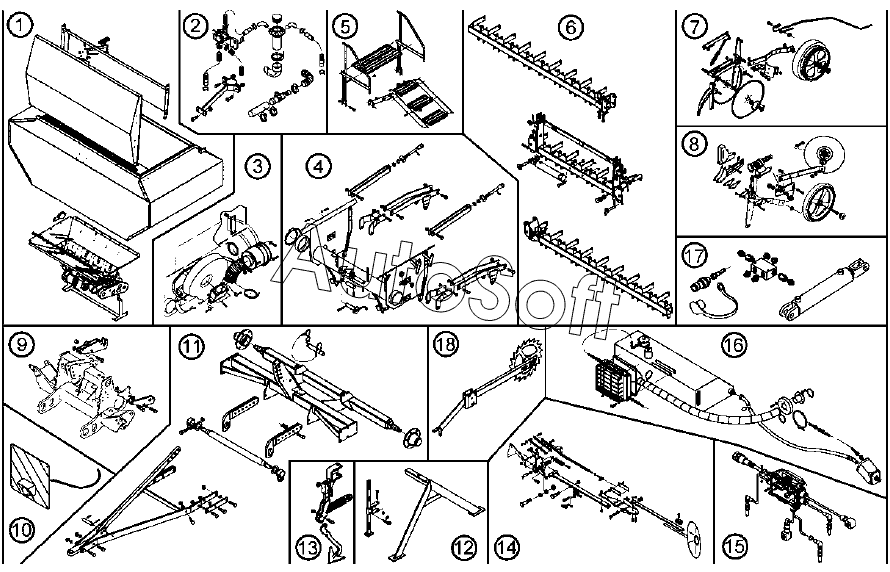

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5***0 | Electric drive | |
| 1 | 5***6 | Support | |
| 1 | 5***6 | Dosage, top part | |
| 1 | 5***8 | Dosage, lower part | |
| 1 | 5***2 | Seeding mechanism | |
| 1 | 6***8 | Hopper | |
| 1 | 6***2 | Hopper | |
| 1 | 6***0 | Hopper | |
| 1 | 6***1 | Cover | |
| 1 | 6***2 | Cover | |
| 1 | 6***5 | Cover | |
| 1 | 6***8 | Dosage | |
| 1 | 6***6 | Dosage | |
| 2 | 5***9 | Flexible hose | |
| 2 | 5***1 | Flexible hose | |
| 2 | 6***4 | Holder for distributor | |
| 2 | 6***5 | Holder for distributor | |
| 2 | 6***0 | Emptying unit for hopper | |
| 2 | 6***2 | Emptying unit for hopper | |
| 2 | 6***3 | Emptying unit for hopper | |
| 2 | 6***4 | Tramline mechanism | |
| 2 | 6***5 | Tramline mechanism | |
| 2 | 6***8 | Distributor | |
| 2 | 6***9 | Distributor | |
| 2 | 6***0 | Distributor | |
| 2 | 6***9 | Supply hoses | |
| 2 | 6***0 | Recirculation | |
| 3 | 6***2 | Cyclone | |
| 3 | 6***0 | Fan | |
| 4 | 6***1 | Basic frame | |
| 4 | 6***1 | Adjustment centre | |
| 4 | 6***3 | Adjustment centre | |
| 4 | 6***9 | Adjustment centre | |
| 4 | 6***0 | Adjustment centre | |
| 4 | 6***2 | Adjustment centre | |
| 4 | 6***3 | Adjustment centre | |
| 5 | 6***1 | Step with platform | |
| 5 | 6***2 | Step with platform | |
| 5 | 6***3 | Step with platform | |
| 5 | 6***4 | Step with platform | |
| 5 | 6***5 | Step with platform | |
| 5 | 6***8 | Step with platform | |
| 5 | 6***9 | Step with platform | |
| 5 | 6***0 | Step with platform | |
| 6 | 6***2 | Coulter frame | |
| 6 | 6***4 | Coulter frame | |
| 6 | 6***6 | Coulter frame | |
| 6 | 6***0 | Coulter frame | |
| 6 | 6***2 | Coulter frame | |
| 6 | 6***4 | Coulter frame | |
| 7 | 5***2 | Levelling harrow | |
| 7 | 5***3 | Levelling harrow | |
| 7 | 5***4 | Levelling harrow | |
| 7 | 5***7 | Swinging arm | |
| 7 | 5***1 | Cover with scraper | |
| 7 | 5***2 | Cover with hard metal scraper | |
| 7 | 5***1 | Rocker arm | |
| 7 | 5***8 | Disc | |
| 7 | 5***2 | Disc carrier | |
| 7 | 6***2 | Levelling harrow | |
| 7 | 6***3 | Levelling harrow | |
| 7 | 6***4 | Carrier | |
| 7 | 6***0 | Holder, short | |
| 7 | 6***2 | Double disc coulter + roller | |
| 7 | 6***8 | Single disc coulter, long | |
| 7 | 6***9 | Single disc coulter, short | |
| 7 | 6***0 | Single disc coulter, short | |
| 7 | 6***1 | Single disc coulter, long | |
| 7 | 6***1 | Single harrow | |
| 8 | 6***4 | Pre-emergency marker | |
| 8 | 6***4 | Pre-emergency marker | |
| 8 | 6***5 | Pre-emergency marker | |
| 8 | 6***6 | Pre-emergency marker | |
| 8 | 6***9 | Holder, long | |
| 9 | 6***4 | Fittings | |
| 9 | 6***3 | Fittings | |
| 9 | 6***0 | Support | |
| 10 | 5***4 | Lighting equipment, front | |
| 10 | 5***5 | Lighting equipment, rear | |
| 10 | 6***4 | Lighting equipment, front | |
| 10 | 6***5 | Lighting equipment | |
| 10 | 6***7 | Lighting equipment | |
| 11 | 3***0 | Top link pin, cpl. | |
| 11 | 5***4 | Bearing | |
| 11 | 5***7 | Bearing | |
| 11 | 5***0 | Wheel 6/161/205 D18 | |
| 11 | 5***0 | Wheel 6/161/205 D18 | |
| 11 | 5***1 | Wheel 6/161/205 D18 | |
| 11 | 5***2 | Wheel 8/221/575 | |
| 11 | 5***3 | Wheel 8/221/575 | |
| 11 | 6***4 | Deichsel | |
| 11 | 6***2 | Trailer | |
| 11 | 6***3 | Trailer | |
| 11 | 6***0 | Lower link connection | |
| 11 | 6***2 | Lower link connection | |
| 11 | 6***6 | Lower link connection | |
| 11 | 6***8 | Lower link connection | |
| 11 | 6***0 | Carrier | |
| 12 | 6***3 | Stand | |
| 12 | 6***8 | Stand | |
| 12 | 6***2 | Stand | |
| 13 | 5***0 | Holder | |
| 13 | 5***3 | Holder | |
| 13 | 5***1 | Track scraper | |
| 13 | 5***5 | Track scraper | |
| 13 | 6***0 | Track scraper with holder | |
| 13 | 6***3 | Track scraper with holder | |
| 13 | 6***1 | Track scraper with holder | |
| 13 | 6***3 | Track scraper with holder | |
| 14 | 5***8 | Axle for track marker | |
| 14 | 6***4 | Track marker | |
| 14 | 6***2 | Intermediate bracket | |
| 14 | 6***9 | Track marker | |
| 15 | 6***9 | Partly width switch off | |
| 15 | 6***5 | Tractor mounting set | |
| 15 | 6***7 | Tractor mounting set | |
| 15 | 6***4 | On board computer | |
| 15 | 6***5 | On board computer | |
| 15 | 6***7 | Cable form | |
| 15 | 6***0 | Electronic box | |
| 16 | 5***1 | Coupling | |
| 16 | 5***5 | Coupling | |
| 16 | 5***6 | Coupling | |
| 16 | 5***7 | Coupling | |
| 16 | 5***3 | HY-pipe assembly pole | |
| 16 | 5***2 | HY-pipe assembly | |
| 16 | 6***7 | Relief pressure valve | |
| 16 | 6***0 | Oil tank | |
| 16 | 6***0 | Oil cooler | |
| 16 | 6***8 | Pump | |
| 17 | 6***1 | Hydraulic assembly fan | |
| 17 | 6***1 | HY-assembly coulter lifting | |
| 17 | 6***2 | HY-assembly coulter frame | |
| 17 | 6***1 | HY-assembly track marker | |
| 17 | 6***6 | HY-assembly track marker | |
| 17 | 6***4 | Drive wheel | |
| 18 | 6***2 | Drive wheel |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
