Каталог запасных частей к технике: Lemken Heliodor 9/700KA (2018). Contens
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
11
11
11
11
12
12
12

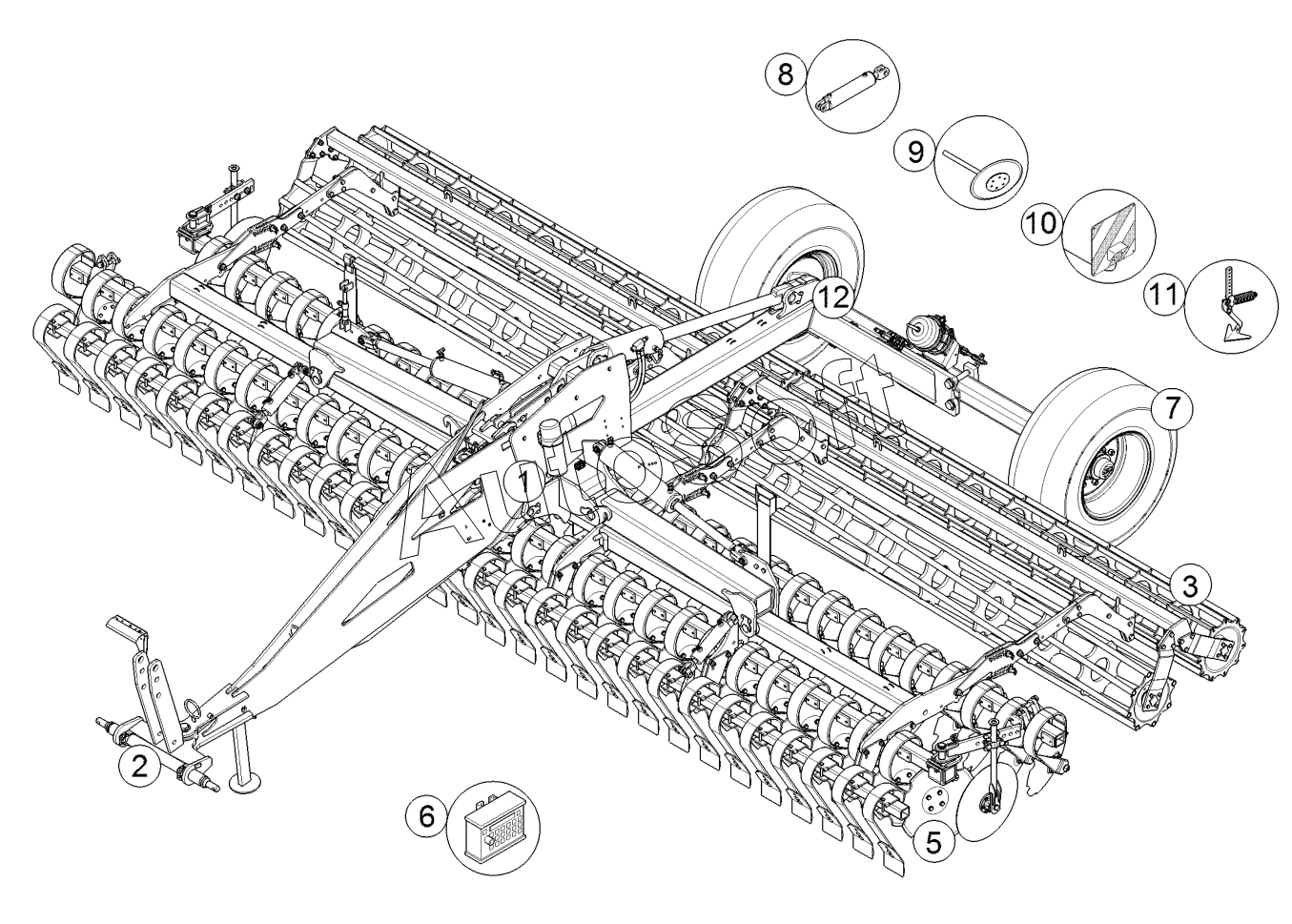

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3***2 | Documents box | |
| 1 | 3***0 | Depth indicator | |
| 1 | 3***9 | Depth indicator | |
| 1 | 5***0 | Label | |
| 1 | 6***3 | Frame | |
| 1 | 6***4 | Frame | |
| 1 | 6***9 | Support | |
| 1 | 6***6 | Carrier depth adjustment | |
| 1 | 6***1 | Depth adjuster | |
| 1 | 6***6 | Frame | |
| 1 | 6***7 | Frame | |
| 1 | 6***4 | Frame | |
| 1 | 6***5 | Frame | |
| 1 | 6***3 | Basic frame | |
| 1 | 6***1 | Locking device | |
| 1 | 6***2 | Stand | |
| 1 | 6***7 | Support | |
| 1 | 6***9 | Drawbar | |
| 1 | 6***0 | Drawbar | |
| 1 | 6***5 | Drawbar | |
| 1 | 6***2 | Connecting plate | |
| 2 | 3***7 | Top link pin with chain | |
| 2 | 3***9 | Top link pin with chain | |
| 2 | 3***1 | Safety chain | |
| 2 | 3***1 | Safety chain | |
| 2 | 6***0 | Traction loop | |
| 2 | 6***1 | Traction loop | |
| 2 | 6***2 | Ball-shaped coupling | |
| 2 | 6***8 | Traction loop | |
| 2 | 6***2 | Headstock | |
| 2 | 6***1 | Traction loop | |
| 2 | 6***2 | Traction loop | |
| 2 | 6***3 | Traction loop | |
| 2 | 6***4 | Ball-shaped coupling | |
| 2 | 6***9 | Lower link connection | |
| 2 | 6***3 | Lower link connection | |
| 2 | 6***4 | Lower link connection | |
| 2 | 6***7 | Lower link connection | |
| 2 | 6***2 | Depth limiter | |
| 3 | 6***5 | Adapter | |
| 3 | 6***0 | Holder | |
| 3 | 6***2 | Holder | |
| 3 | 6***8 | Holder | |
| 3 | 6***2 | Knife rollerjong knifes | |
| 3 | 6***3 | Knife rollerjong knifes | |
| 3 | 6***5 | Tube bar roller | |
| 3 | 6***7 | Double roller | |
| 3 | 6***7 | Double roller | |
| 3 | 6***6 | Double profile roller | |
| 3 | 6***7 | Double roller | |
| 3 | 6***2 | Flexring roller | |
| 3 | 6***6 | Trapeze packer roller | |
| 3 | 6***7 | Trapeze packer roller | |
| 3 | 6***8 | Trapeze packer roller | |
| 3 | 6***9 | Trapeze packer roller | |
| 3 | 6***8 | Holder | |
| 3 | 6***2 | Toothed packer roller | |
| 3 | 6***3 | Toothed packer roller | |
| 3 | 6***4 | Toothed packer roller | |
| 3 | 6***5 | Toothed packer roller | |
| 3 | 6***0 | Holder | |
| 3 | 6***5 | Stabilizer | |
| 3 | 6***6 | Double roller | |
| 3 | 6***7 | Holder | |
| 3 | 6***6 | Double profile ring roller | |
| 3 | 6***6 | Knife roller | |
| 3 | 6***7 | Knife roller | |
| 5 | 6***5 | Holder | |
| 5 | 6***4 | Spring tine | |
| 5 | 6***5 | Spring tine | |
| 5 | 6***7 | Spring tine | |
| 5 | 6***0 | Bracket | |
| 5 | 6***5 | Levelling tine section front | |
| 5 | 6***6 | Leveling tine section | |
| 5 | 6***1 | Holder | |
| 5 | 6***5 | Bearing | |
| 5 | 6***3 | Levelling harrow | |
| 5 | 6***0 | Bearing | |
| 5 | 6***1 | Bearing | |
| 5 | 6***8 | Spring tine | |
| 5 | 6***9 | Spring tine | |
| 5 | 6***2 | Hollow disc | |
| 5 | 6***5 | Outer disc | |
| 5 | 6***2 | Holder | |
| 5 | 6***3 | Holder | |
| 5 | 6***6 | Concave disc | |
| 6 | 5***2 | Extension cable | |
| 6 | 6***3 | Extension | |
| 6 | 6***7 | Extension cable | |
| 7 | 5***6 | Running axle | |
| 7 | 5***0 | Running axle | |
| 7 | 5***4 | Braking axle | |
| 7 | 5***8 | Braking axle | |
| 7 | 5***4 | Wheel 8/221/575 | |
| 7 | 5***5 | Wheel 8/221/575 | |
| 7 | 5***0 | Wheel 8/221/275 | |
| 7 | 5***6 | Wheel | |
| 7 | 5***7 | Wheel | |
| 7 | 5***8 | Braking axle | |
| 7 | 5***0 | Wheel | |
| 7 | 5***1 | Wheel | |
| 7 | 6***4 | Braking axle | |
| 7 | 6***5 | Running axle | |
| 7 | 6***6 | Running axle | |
| 7 | 6***8 | Braking axle | |
| 7 | 6***3 | Parking brake system | |
| 7 | 6***5 | Braking axle | |
| 7 | 6***4 | Trailer | |
| 7 | 6***6 | Wheel chock | |
| 7 | 6***8 | Compressed-air brake | |
| 7 | 6***4 | Braking axle | |
| 7 | 6***5 | Braking axle | |
| 8 | 5***4 | Hydraulic ram | |
| 8 | 5***3 | Ram | |
| 8 | 5***6 | Ram | |
| 8 | 5***6 | Ram | |
| 8 | 5***9 | Ram | |
| 8 | 5***1 | Adapter-inner thread | |
| 8 | 5***9 | Hydraulic ram | |
| 8 | 5***1 | Extension set | |
| 8 | 5***6 | Flow devider | |
| 8 | 5***0 | Montage-BG.Hydr.Deichs | |
| 8 | 5***8 | Hydraulic ram | |
| 8 | 5***9 | Hydraulic ram | |
| 8 | 5***4 | Hydraulic ram | |
| 8 | 6***5 | HY-assembly lift linkage | |
| 8 | 6***6 | HY-assembly lift linkage | |
| 8 | 6***5 | Hydraulic assembly | |
| 8 | 6***9 | Hydraulic assembly | |
| 8 | 6***0 | Hydraulic assembly | |
| 8 | 6***1 | Hydraulic assembly | |
| 8 | 6***2 | Hydraulic assembly | |
| 8 | 6***3 | Hydraulic assembly | |
| 8 | 6***1 | Hydraulic Supply Pipes | |
| 8 | 6***2 | Hydraulic assembly | |
| 8 | 6***3 | Hydraulic assembly | |
| 8 | 6***4 | Braking system | |
| 8 | 6***5 | Braking system | |
| 8 | 6***2 | Hydraulic assemb.depth adjust. | |
| 8 | 6***4 | HY supply pipe drawbar | |
| 8 | 6***2 | Hydraulic Supply Pipes | |
| 8 | 6***7 | Hydraulic Supply Pipes | |
| 8 | 6***8 | HY-assembly pole | |
| 8 | 6***7 | HY-assembly directional valve | |
| 8 | 6***5 | HY-assembly directional valve | |
| 10 | 3***1 | Cable | |
| 10 | 3***0 | Cable | |
| 10 | 3***5 | Basic cable | |
| 10 | 3***0 | Basic cable | |
| 10 | 3***2 | Basic cable | |
| 10 | 3***3 | Basic cable | |
| 10 | 5***8 | Lighting unit | |
| 10 | 5***9 | Lighting unit | |
| 10 | 5***2 | Lighting unit | |
| 10 | 5***3 | Lighting unit | |
| 10 | 5***0 | Cable | |
| 10 | 5***4 | Warning board | |
| 10 | 5***5 | Warning board | |
| 10 | 5***0 | Lighting unit | |
| 10 | 5***1 | Lighting unit | |
| 10 | 5***2 | Lighting unit | |
| 10 | 5***3 | Lighting unit | |
| 10 | 6***7 | Board | |
| 10 | 6***2 | Lighting equipment | |
| 10 | 6***3 | Lighting equipment | |
| 10 | 6***0 | Transport protection | |
| 10 | 6***2 | Lighting equipment | |
| 10 | 6***0 | Lighting equipment | |
| 10 | 6***2 | Lighting equipment | |
| 10 | 6***3 | Lighting equipment | |
| 10 | 6***3 | Board | |
| 10 | 6***4 | Lighting equipment | |
| 10 | 6***5 | Lighting equipment | |
| 10 | 6***0 | Lighting enlargement | |
| 10 | 6***5 | Holder plate | |
| 10 | 6***6 | Holder plate | |
| 10 | 6***9 | Transport protection | |
| 11 | 5***1 | Track scraper | |
| 11 | 5***5 | Track scraper | |
| 11 | 5***1 | Track scraper | |
| 11 | 6***8 | Holder for track scraper | |
| 11 | 6***9 | Holder for track scraper | |
| 12 | 3***9 | Turnbuckle | |
| 12 | 6***9 | Kupplungsteil | |
| 12 | 6***1 | Hydraulic lift linkage |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
