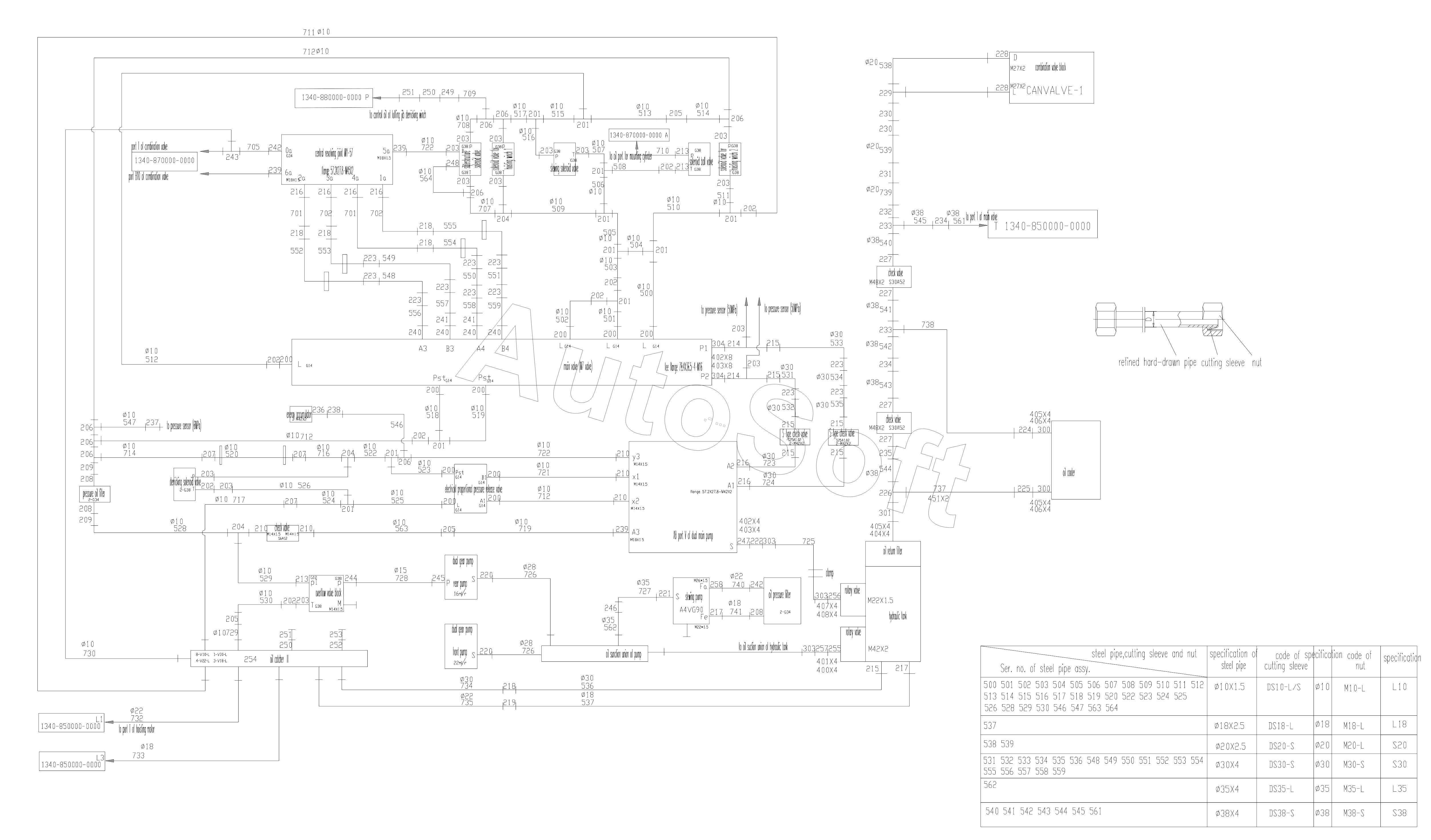

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM D00663401600000001Y
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 200 | 1***2 | Fitting | |
| 201 | 1***6 | Fitting | |
| 202 | 1***7 | Fitting | |
| 203 | 1***4 | Fitting | |
| 204 | 1***9 | Fitting | |
| 205 | 1***6 | Fitting | |
| 206 | 1***7 | Fitting | |
| 207 | 1***3 | Fitting | |
| 208 | 1***2 | Fitting XA18-L/R3/4"/WD | |
| 209 | 1***4 | Fitting | |
| 210 | 1***7 | Fitting | |
| 213 | 1***8 | Fitting | |
| 214 | 0***1 | Flange fitting | |
| 215 | 1***5 | Fitting | |
| 216 | 1***2 | Flange assembly | |
| 217 | 1***1 | Fitting | |
| 218 | 1***5 | Fitting | |
| 219 | 1***2 | Fitting | |
| 220 | 1***2 | Flange fitting | |
| 221 | 1***7 | Fitting | |
| 222 | 0***0 | Oil suction union for 140 pump | |
| 223 | 1***6 | Fitting | |
| 226 | 0***2 | Oil return union of filter | |
| 227 | 1***3 | Fitting | |
| 228 | 1***1 | Pipe fitting | |
| 229 | 1***8 | Fitting | |
| 230 | 1***6 | Fitting | |
| 231 | 1***4 | Fitting | |
| 232 | 1***7 | Fitting | |
| 233 | 1***9 | Fitting | |
| 234 | 1***3 | Fitting | |
| 235 | 1***0 | Fitting | |
| 236 | 1***8 | Pipe fitting | |
| 237 | 1***0 | Fitting | |
| 238 | 1***3 | Fitting | |
| 239 | 1***8 | Fitting XA10-L/M18x1.5/WD | |
| 240 | 1***3 | Flange assembly | |
| 241 | 1***8 | Fitting | |
| 242 | 1***6 | Fitting | |
| 243 | 1***7 | Fitting | |
| 244 | 1***3 | Fitting | |
| 245 | 1***5 | Flange fitting | |
| 246 | 1***7 | Fitting | |
| 247 | 1***1 | Split flange | |
| 248 | 0***0 | Fitting | |
| 249 | 1***5 | Fitting | |
| 250 | 1***4 | Blanking plug | |
| 251 | 1***1 | Nut | |
| 252 | 1***5 | Blanking plug | |
| 253 | 1***3 | Nut | |
| 254 | 0***0 | Oil catcher II | |
| 255 | 0***0 | Oil suction union | |
| 256 | 0***0 | Oil suction union | |
| 257 | 0***0 | Oil suction flange | |
| 258 | 1***7 | Fitting | |
| 259 | 1***2 | Fitting | |
| 300 | 1***7 | O-ring | |
| 301 | 1***4 | O-ring 95x3.1 GB1235-1976 | |
| 303 | 1***4 | O-ring 115x3.1 GB1235-1976 | |
| 304 | 1***2 | O-ring 55x3.1 GB1235-1976 | |
| 400 | 1***7 | Bolt | |
| 401 | 1***2 | Washer | |
| 402 | 1***2 | Bolt | |
| 403 | 1***5 | Washer | |
| 404 | 1***8 | Bolt | |
| 405 | 1***4 | Washer | |
| 406 | 1***4 | Bolt | |
| 407 | 1***8 | Bolt | |
| 408 | 1***3 | Washer | |
| 451 | 0***0 | Pipe clamp | |
| 452 | 1***4 | Pipe clamp | |
| 453 | 0***0 | Pipe clamp | |
| 454 | 0***0 | Pipe clamp | |
| 455 | 0***0 | Pipe clamp | |
| 500 | 0***0 | Steel pipe assy | |
| 501 | 0***0 | Steel pipe assy | |
| 502 | 0***0 | Steel pipe assy | |
| 503 | 0***0 | Steel pipe assy | |
| 504 | 0***0 | Steel pipe assy | |
| 505 | 0***0 | Steel pipe assy | |
| 506 | 0***0 | Steel pipe assy | |
| 507 | 0***0 | Steel pipe assy | |
| 508 | 0***0 | Steel pipe assy | |
| 509 | 0***0 | Steel pipe assy | |
| 510 | 0***0 | Steel pipe assy | |
| 511 | 0***0 | Steel pipe assy | |
| 512 | 0***0 | Steel pipe assy | |
| 513 | 0***0 | Steel pipe assy | |
| 514 | 0***0 | Steel pipe assy | |
| 515 | 0***0 | Steel pipe assy | |
| 516 | 0***0 | Steel pipe assy | |
| 517 | 0***0 | Steel pipe assy | |
| 518 | 0***0 | Steel pipe assy | |
| 519 | 0***0 | Steel pipe assy | |
| 520 | 0***0 | Steel pipe assy | |
| 522 | 0***0 | Steel pipe assy | |
| 523 | 0***0 | Steel pipe assy | |
| 524 | 0***0 | Steel pipe assy | |
| 525 | 0***0 | Steel pipe assy | |
| 526 | 0***0 | Steel pipe assy | |
| 528 | 0***0 | Steel pipe assy | |
| 529 | 0***0 | Steel pipe assy | |
| 530 | 0***0 | Steel pipe assy | |
| 531 | 0***0 | Steel pipe assy | |
| 532 | 0***0 | Steel pipe assy | |
| 533 | 0***0 | Steel pipe assy | |
| 534 | 0***0 | Steel pipe assy | |
| 535 | 0***0 | Steel pipe assy | |
| 536 | 0***0 | Steel pipe assy | |
| 537 | 0***0 | Steel pipe assy | |
| 538 | 0***0 | Steel pipe assy | |
| 539 | 0***0 | Steel pipe assy | |
| 540 | 0***0 | Steel pipe assy | |
| 541 | 0***0 | Steel pipe assy | |
| 542 | 0***0 | Steel pipe assy | |
| 543 | 0***0 | Steel pipe assy | |
| 544 | 0***0 | Steel pipe assy | |
| 545 | 0***0 | Steel pipe assy | |
| 546 | 0***0 | Steel pipe assy | |
| 547 | 0***0 | Steel pipe assy | |
| 548 | 0***0 | Steel pipe assy | |
| 549 | 0***0 | Steel pipe assy | |
| 550 | 0***0 | Steel pipe assy | |
| 551 | 0***0 | Steel pipe assy | |
| 552 | 0***0 | Steel pipe assy | |
| 553 | 0***0 | Steel pipe assy | |
| 554 | 0***0 | Steel pipe assy | |
| 555 | 0***0 | Steel pipe assy | |
| 556 | 0***0 | Steel pipe assy | |
| 557 | 0***0 | Steel pipe assy | |
| 558 | 0***0 | Steel pipe assy | |
| 559 | 0***0 | Steel pipe assy | |
| 561 | 0***0 | Steel pipe assy | |
| 562 | 0***0 | Steel pipe assy | |
| 563 | 0***0 | Steel pipe assy | |
| 564 | 0***0 | Steel pipe assy | |
| 701 | 1***3 | Rubber hose assy | |
| 702 | 1***1 | Rubber hose assy | |
| 705 | 1***8 | Rubber hose assy | |
| 707 | 1***6 | Rubber hose assy | |
| 708 | 1***5 | Rubber hose assy | |
| 709 | 1***1 | Rubber hose assy | |
| 710 | 1***5 | Rubber hose assy | |
| 711 | 1***5 | Hose assy | |
| 712 | 1***9 | Rubber hose assy | |
| 714 | 1***1 | Rubber hose assy | |
| 716 | 1***4 | Rubber hose assy | |
| 717 | 1***3 | Rubber hose assy | |
| 719 | 1***5 | Rubber hose assy | |
| 721 | 1***3 | Rubber hose assy | |
| 722 | 1***7 | Rubber hose assy | |
| 723 | 1***9 | Rubber hose assy | |
| 724 | 1***6 | Rubber hose assy | |
| 725 | 0***0 | Oil delivery hose | |
| 726 | 1***0 | Rubber hose assy | |
| 727 | 1***3 | Rubber hose assy | |
| 728 | 1***4 | Rubber hose assy | |
| 729 | 1***1 | Rubber hose assy | |
| 730 | 1***5 | Rubber hose assy | |
| 732 | 1***3 | Rubber hose assy | |
| 733 | 1***6 | Rubber hose assy | |
| 734 | 1***5 | Rubber hose assy | |
| 735 | 1***7 | Rubber hose assy | |
| 737 | 1***9 | Wire braided hydraulic rubber hose | |
| 738 | 1***8 | Rubber hose assy | |
| 739 | 1***8 | Rubber hose assy | |
| 740 | 1***0 | Rubber hose assy | |
| 741 | 1***6 | Rubber hose assy |
