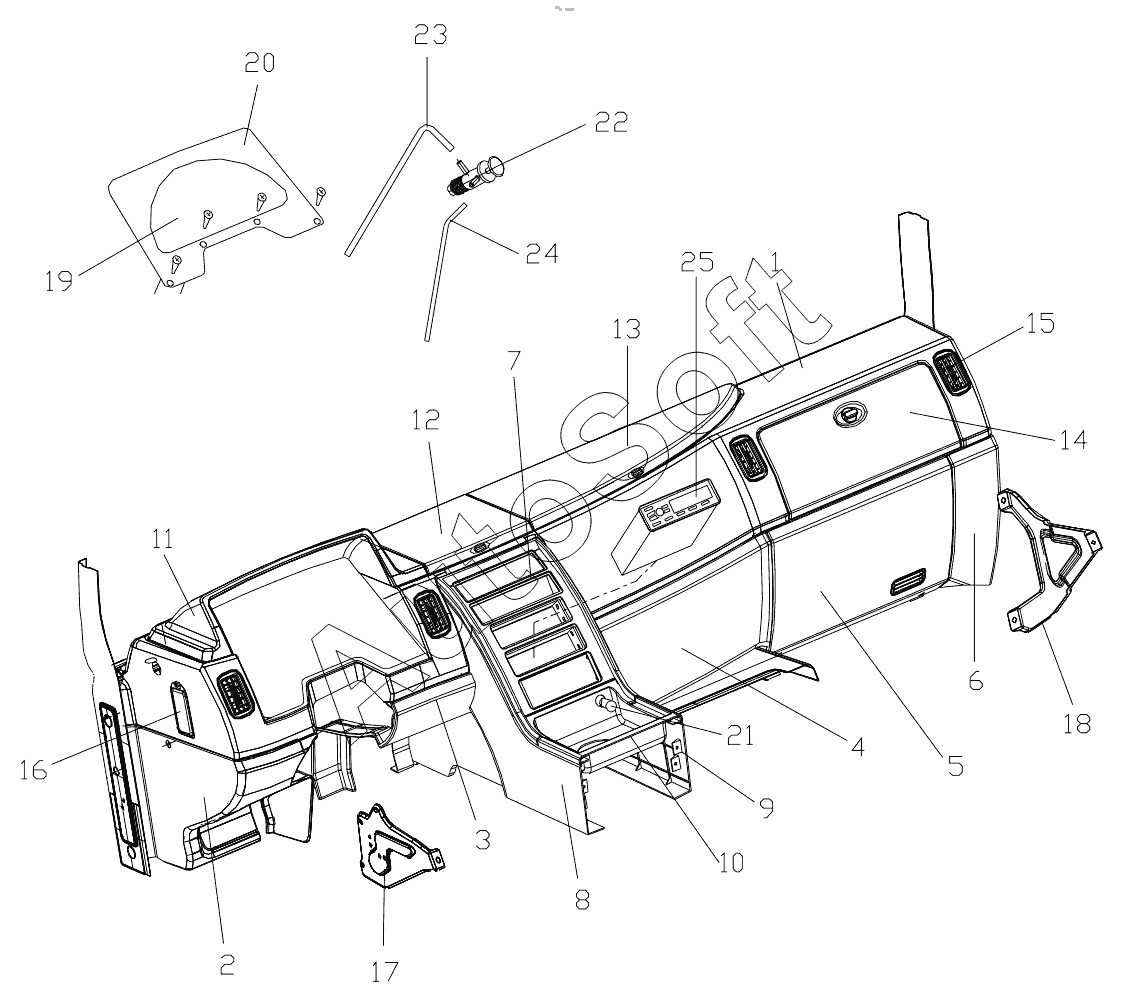

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3 (2013). DRIVER'S CAB (INSTRUMENT CONSOLE AND ITS ACCESSORIES) D1130000435_102383Y
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Q150B0820 | Q***0 | Hexagon bolt | |
| Q150B0820 | Q***0 | Hexagon bolt | |
| Q2140518 | Q***8 | Cross-recessed flat-head screw | |
| Q2140518 | Q***8 | Cross-recessed flat-head screw | |
| Q2140630-Z4 | Q***4 | Cross-recessed pan-head bolt | |
| Q2540630 | Q***0 | Cross-recessed countersunk head bolt | |
| Q2734222 | Q***2 | Cross-recessed cup head threaded screw with large head | |
| Q2734820-Z4 | Q***4 | Cross-recessed cup head self-drilling screw with large head | |
| Q2734820-Z4 | Q***4 | Cross-recessed cup head self-drilling screw with large head | |
| Q2734850-Z4 | Q***4 | Cross-recessed cup head threaded screw with large head | |
| Q2740520 | Q***0 | Cross-recessed countersunk head self-drilling screw | |
| Q2740520 | Q***0 | Cross-recessed countersunk head self-drilling screw | |
| Q2740520 | Q***0 | Cross-recessed countersunk head self-drilling screw | |
| Q2740520 | Q***0 | Cross-recessed countersunk head self-drilling screw | |
| Q2740520 | Q***0 | Cross-recessed countersunk head self-drilling screw | |
| Q340B05 | Q***5 | Nut | |
| Q340B06 | Q***6 | Hexagon nut | |
| Q340B08 | Q***8 | Hexagon nut | |
| Q340B08 | Q***8 | Hexagon nut | |
| Q39005 | Q***5 | Butterfly nut | |
| Q39005 | Q***5 | Butterfly nut | |
| Q40106-Z4 | Q***4 | Flat washer | |
| Q40108 | Q***8 | Flat washer | |
| Q40108 | Q***8 | Flat washer | |
| Q40205 | Q***5 | Large washer | |
| Q40205-Z4 | Q***4 | Large washer | |
| Q40205-Z4 | Q***4 | Large washer | |
| Q40206 | Q***6 | Large washer | |
| Q40206 | Q***6 | Large washer | |
| Q40206 | Q***6 | Large washer | |
| Q40306 | Q***6 | Spring washer | |
| Q40308 | Q***8 | Spring washer | |
| Q40308 | Q***8 | Spring washer | |
| SJ38B13-01020 | S***0 | Mounting plate of instruments | |
| SJ38B13-02010 | S***0 | Odometer sensor | |
| SJ53V25-02247 | S***7 | Pad – left blocking plate | |
| SJ79V25-03010 | S***0 | Antenna assy | |
| SJ79V25-03020 | S***0 | Video line assy | |
| 1 | S***0 | Instrument panel body assy | |
| 2 | S***6 | Instrument panel left blocking plate | |
| 3 | S***0 | Right knee guard board assy | |
| 4 | S***5 | Intermediate lower guard board of instrument panel – passenger side | |
| 5 | S***5 | Right lower guard board of instrument panel – passenger side | |
| 6 | S***6 | Instrument panel right blocking plate | |
| 7 | S***1 | Auxiliary instrument panel – appliance | |
| 8 | S***2 | Left baffle – auxiliary instrument panel | |
| 9 | S***3 | Right baffle – auxiliary instrument panel | |
| 10 | S***5 | Central storage box | |
| 11 | S***0 | Instruments cover assy | |
| 12 | S***5 | Small sundries cover assy | |
| 13 | S***5 | Large sundries cover assy | |
| 14 | S***0 | Electric appliance cover plate assy | |
| 15 | S***0 | Front window supply assy | |
| 16 | S***8 | Oil pan cover – instrument console | |
| 17 | S***5 | Instrument frame left bracket assy | |
| 18 | S***6 | Instrument frame right bracket | |
| 19 | S***B | CAN bus display unit assy | |
| 20 | S***0 | Mounting plate assy of instruments | |
| 21 | S***0 | Cigarette lighter assy | |
| 22 | S***0 | Parking brake assy | |
| 23 | S***0 | Hose assy To chamber 1 – parking brake | |
| 24 | S***0 | Hose assy To chamber 2 1 – parking brake | |
| 25 | S***0 | Radio cassette assy |
