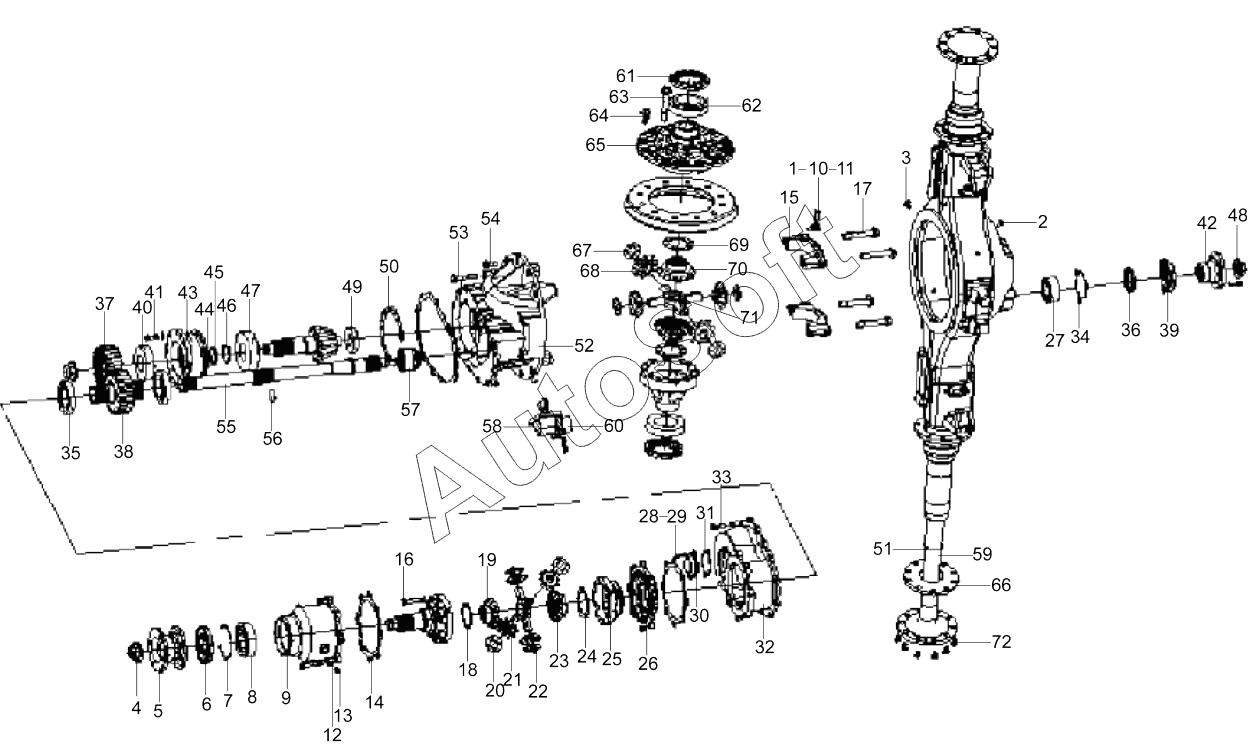

Каталог запасных частей к технике: SANY STC250H. A220600000039 Axle GP, middle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A***8 | Stop plate, adjusting ring | |
| 2 | A***3 | Plug, screw, oil drain | |
| 3 | A***8 | Plug gp, air | |
| 4 | A***9 | Nut | |
| 5 | A***1 | Differential, between axles, flange | |
| 6 | A***7 | Oil seal, drive bevel gear | |
| 7 | A***6 | Ring, retainer | |
| 8 | A***2 | Deferential bearing, between axles | |
| 9 | 6***9 | Differential, between axles, shell | |
| 10 | A***2 | Washer | |
| 11 | A***1 | Bolt | |
| 12 | 2***3 | Bolt | |
| 13 | A***3 | Washer | |
| 14 | A***8 | Gasket, differential between axles, gasket | |
| 15 | A***8 | Plate | |
| 16 | A***1 | Bolt | |
| 17 | A***7 | Bolt,differential bearing cover | |
| 18 | A***5 | Gasket, front differential gear | |
| 19 | A***2 | Differential between axles, differential gear, front | |
| 20 | A***3 | Planetary gear, differential between axles | |
| 21 | A***7 | Gasket, planetary gear | |
| 22 | A***5 | Differential, between axles, cross shaft | |
| 23 | A***8 | Differential between axles, differential gear, rear | |
| 24 | A***4 | Gasket, rear differential gear | |
| 25 | A***9 | Differential between axles, rear housing | |
| 26 | A***2 | Bearing house, drive cylindrical gear | |
| 27 | A***9 | Bearing gp, through shaft | |
| 28 | A***2 | Bolt | |
| 29 | A***1 | Washer | |
| 30 | A***8 | Cover, blanking | |
| 31 | A***6 | Gasket, blanking cover | |
| 32 | A***0 | Cylindrical gear, housing | |
| 33 | A***3 | Bolt | |
| 34 | A***7 | Gasket, through shaft bearing cover | |
| 35 | A***3 | Bearing, drive cylindrical gear | |
| 36 | A***7 | Thru shaft oil sealing as | |
| 37 | A***2 | Gear, column, driven | |
| 38 | A***3 | Gear, drive cylindrical | |
| 39 | A***1 | Bearing cover, through shaft | |
| 40 | A***0 | Bearing, tapered roller | |
| 41 | A***8 | Bolt | |
| 42 | A***0 | Through shaft, flange | |
| 43 | A***9 | Bearing house, drive bevel gear | |
| 44 | A***6 | Spacer, adjusting | |
| 45 | A***6 | Shim, adjustment, drive gear bearing | |
| 46 | A***5 | Spacer bushing | |
| 47 | A***1 | Bearing, tapered roller | |
| 48 | A***6 | Nut | |
| 49 | A***4 | Main gear, guide bearing | |
| 50 | A***4 | Gasket, cylindrical gear, gasket | |
| 51 | A***4 | Semi axis oil seal assembly | |
| 52 | A***7 | Housing gp, gearbox, middle | |
| 53 | A***5 | Bolt,fastening main reducer | |
| 54 | A***6 | Bolt | |
| 55 | A***7 | Shaft, tandem | |
| 56 | A***4 | Retainer ring, steel wire | |
| 57 | A***9 | Differential between axles, meshing gear sleeve | |
| 58 | A***0 | Interaxial differential lock as | |
| 59 | A***3 | Semi axis, left | |
| 60 | A***4 | Bolt | |
| 61 | A***7 | Ring, adjusting, differential bearing | |
| 62 | A***0 | Differential, bearing | |
| 63 | A***9 | Bolt,fastening differential shell | |
| 64 | A***8 | Bolt,driven gear & differential | |
| 65 | A***2 | Differential, left shell | |
| 66 | A***3 | Gasket, semi axis | |
| 67 | A***6 | Gasket, planet gear | |
| 68 | A***1 | Gear, planetary | |
| 69 | A***3 | Gasket, semi-shaft gear | |
| 70 | A***1 | Gear, semi-shaft | |
| 71 | A***4 | Differential, cross shaft | |
| 72 | A***6 | Bolt, half shaft , rear axle |
