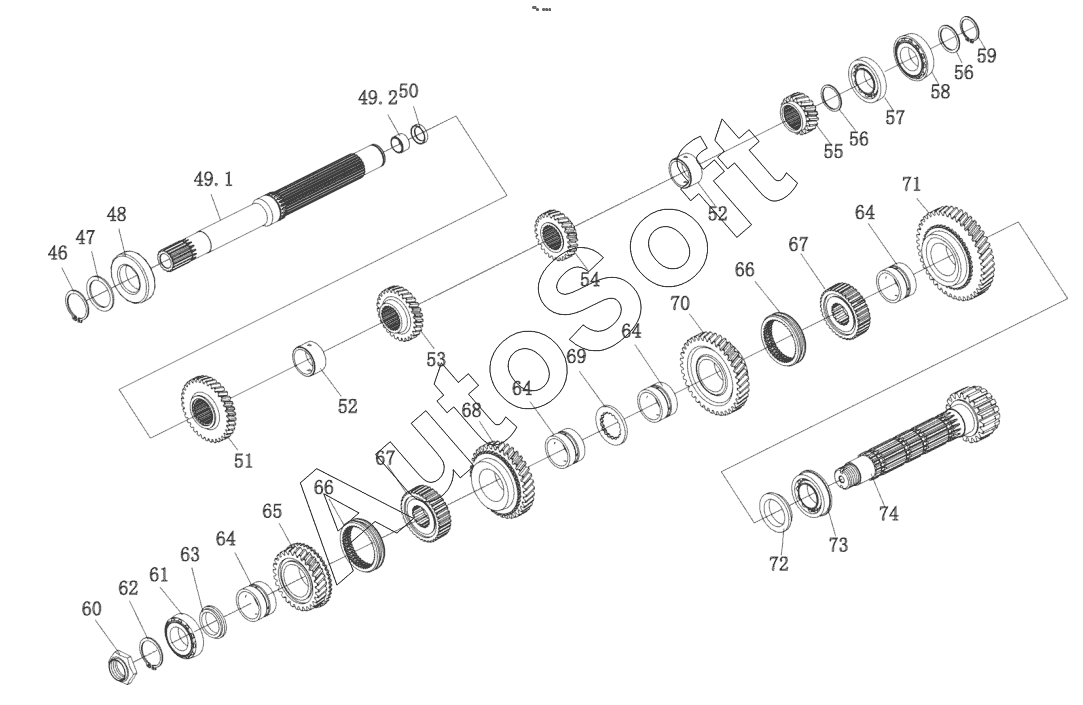

Каталог запасных частей к технике: YTO X1204 (2013). Transmission case assembly
46
47
1204.37.189-192
48
49.1
49.2
50
51
52
52
53
54
55
56
56
57
58
59
60
61
NUP2208E(92508E)
62
63
64
64
64
64
65
66
66
67
67
68
69
70
71
72
73
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1204.37.189-192 | 1***2 | 1204.37.189-192 | |
| 1604-1.37.117 | 1***7 | Hinged bolt | |
| JB/T982-1977 | J***7 | Washer 33 | |
| NUP2208E(92508E) | N***) | NUP2208E(92508E) | |
| 1 | G***8 | Stud AGM8-M8x30-8.8-Zn.D | |
| 10 | G***7 | Washer 18-Zn.D | |
| 100 | 1***Z | Driven gear, Reverse | |
| 101 | 1***Z | Driven shaft, auxiliary transmission | |
| 102 | 1***2 | Shim, driven shaft, auxiliary transmission | |
| 103 | G***4 | Bearing 33206E(3007206) | |
| 104 | 1***9 | Nut, driven shaft, auxiliary transmission | |
| 105 | G***5 | Screw M10x12 | |
| 11 | C***n | Cover unit (UPR), transmission | |
| 11.1 | 1***2 | Cover (UPR), transmission | |
| 11.2 | 4***7 | Dowel pin 12x20 | |
| 115 | G***7 | Plain washer 8 | |
| 116 | G***4 | Mild steel wire TA-1.6x180 | |
| 117 | 1***9 | Inner drive link, auxiliary transmission | |
| 118 | 5***3 | Spacer ring, spring | |
| 119 | 5***6 | Return spring, control lever | |
| 12 | 1***1 | Elbow connection, plug, drum breather | |
| 120 | 1***1 | Shifting block, control | |
| 121 | B***Z | Pin 5x30 | |
| 122 | 1***8 | Inner drive link, main transmission | |
| 123 | J***0 | Hose clamp d32 | |
| 124 | 1***3 | Breather hose | |
| 125 | 1***5 | Breather plug assembly | |
| 126 | S***A | Auxiliary shift lever | |
| 127 | S***A | Main shift lever | |
| 128 | L***1 | Pressure plate, cover, shift lever | |
| 129 | L***1 | Cover, shift lever | |
| 13 | 1***2 | Retainer, bearing, auxiliary transmission | |
| 130 | L***1 | Bottom plate unit, cover, shift lever | |
| 131 | G***5 | Tapping screw ST6.3x50 | |
| 132 | G***5 | Tapping screw ST6.3x50 | |
| 133 | 8***8 | Pointer, flywheel | |
| 134 | 8***7 | Pad, inspection cover | |
| 135 | 8***6 | Inspection cover | |
| 14 | G***6 | Bolt M12x1.25x60 | |
| 15 | G***7 | Washer 18-Zn.D | |
| 16 | 1***8 | Slotted plug M12x1.25 | |
| 17 | G***6 | Pin 6.3x26 | |
| 18 | J***7 | Washer 14-Zn.D | |
| 19 | 8***A | Magnetic drain plug unit | |
| 2 | G***7 | Washer 8 | |
| 20 | 1***4 | Welded auxiliary shift lever unit | |
| 21 | G***0 | Bolt M8x45 | |
| 22 | 1***A | Shield (LWR), cover (UPR), transmission | |
| 23 | 5***A | Sleeve, main shift lever | |
| 24 | G***6 | Retaining ring 80 | |
| 25 | 4***5 | Oil seal, master lever | |
| 26 | 1***0 | Control lever (LWR), shift lever | |
| 27 | G***0 | Bolt M8x25 | |
| 28 | 5***4 | Support unit, main shift lever | |
| 29 | 8***1 | Spring | |
| 3 | G***0 | Nut M8-Zn.D | |
| 30 | G***9 | Steel ball 10 | |
| 31 | 1***4 | Slider, I-II | |
| 32 | 1***6 | Fork, III - IV | |
| 33 | 1***5 | Slider, III - IV | |
| 34 | 1***4 | Fork, I-II | |
| 35 | 8***4 | Shift head | |
| 36 | 1***7 | Slider, N-R | |
| 37 | 1***5 | Reverse shift rod (MID) | |
| 38 | 5***1 | Interlock pin | |
| 39 | 1***6 | Slider, Hi-Lo | |
| 4 | 1***6 | Bearing cap, driven shaft | |
| 40 | 1***3 | Reverse shift fork (MID) | |
| 41 | 1***7 | Fork, Hi-Lo | |
| 42 | 1***5 | Spiral spring pin 5x30 | |
| 43 | 1***0 | Shifting block, transfer, external control | |
| 44 | L***6 | Set screw, shifting block | |
| 45 | 1***A | Welded main shift lever unit | |
| 46 | G***6 | Retaining ring 80 | |
| 47 | 1***4 | Adjusting shim, driving shaft | |
| 48 | G***4 | Bearing NUP211E(92211E) | |
| 49 | 1***2 | Driving shaft unit | |
| 49.1 | 1***4 | Driving shaft | |
| 49.2 | 4***7 | Bush, driving shaft | |
| 5 | 1***5 | Bearing cap, driving shaft | |
| 50 | 5***2 | Oil seal (RR), driving shaft 28x38x7 | |
| 51 | S***7 | Driving gear, IV | |
| 52 | 5***3 | Spacer | |
| 53 | S***5 | Driving gear, III | |
| 54 | S***3 | Driving gear, II | |
| 55 | S***1 | Driving gear, I | |
| 56 | 1***5 | Circlip, driving shaft | |
| 57 | 1***6 | Cone bearing (RR), driving shaft | |
| 58 | G***7 | Cone Bearing 32209E(7509E) | |
| 59 | 1***5 | Circlip 45 | |
| 6 | G***8 | Stud AGM8-M8x30-8.8-Zn.D | |
| 60 | 5***9 | Nut, driven shaft, | |
| 61 | G***3 | Bearing (FR), driven shaft | |
| 62 | 4***A | Washer, locking plate | |
| 63 | 4***5 | Retainer ring, driven gear, 1000 r/min | |
| 64 | 1***9 | Synchronizer sleeve | |
| 65 | S***0 | Driven gear weldment, IV | |
| 66 | 1***6 | Shift collar, I, II, III&IV | |
| 67 | 1***Z | Gear holder | |
| 68 | S***6 | Driven gear, III | |
| 69 | 5***1 | Retainer ring | |
| 7 | G***8 | Oil seal FB55x75x12-F | |
| 70 | S***4 | Driven gear, II | |
| 71 | S***2 | Driven gear, I | |
| 72 | 1***0 | Circlip, driven shaft | |
| 73 | 1***8 | Cone bearing (RR), driven shaft | |
| 74 | 1***Z | Driven shaft | |
| 75 | 1***2 | Retainer ring, shaft, reverse gear | |
| 76 | 1***3 | Washer, reverse gear | |
| 77 | G***4 | Bearing 6206E(206) | |
| 78 | 1***Z | Reverse idle gear | |
| 79 | G***6 | Retaining ring 80 | |
| 8 | 1***1 | Housing unit, transmission case (FR) | |
| 8.1 | 1***1 | Housing, transmission case (FR) | |
| 8.2 | 1***1 | Bearing seat | |
| 8.3 | 1***3 | Locating sleeve | |
| 8.4 | G***7 | Washer 18-Zn.D | |
| 8.5 | G***6 | Bolt M12x1.25x60 | |
| 80 | 1***8 | Reverse shaft unit | |
| 81 | G***7 | Washer 18-Zn.D | |
| 82 | G***6 | Bolt M10x28 | |
| 83 | 1***Z | Driving shaft, auxiliary transmission | |
| 84 | S***0 | Driving gear, medium range | |
| 85 | 1***1 | Spacer, driving gear, auxiliary transmission | |
| 86 | 1***Z | Reverse driving gear | |
| 87 | 1***7 | Circlip, driving shaft, auxiliary transmission | |
| 88 | G***7 | Cone Bearing 32209E(7509E) | |
| 89 | 1***4 | Adjusting shim, driving shaft, auxiliary transmission | |
| 9 | G***6 | Bolt M12x1.25x100 | |
| 90 | 1***6 | Circlip 30 | |
| 91 | 1***3 | Washer, bearing | |
| 92 | G***4 | Bearing 33206E(3007206) | |
| 93 | 1***Z | Gear retainer, Hi-Lo | |
| 94 | 1***Z | Shift collar, Hi-Lo | |
| 95 | 1***Z | Driven gear, low range | |
| 96 | 1***8 | Spacer, driven gear, auxiliary transmission | |
| 97 | S***1 | Driven gear, medium range | |
| 98 | 1***Z | Gear retainer, N-R | |
| 99 | 1***Z | Shift collar, N-R |
