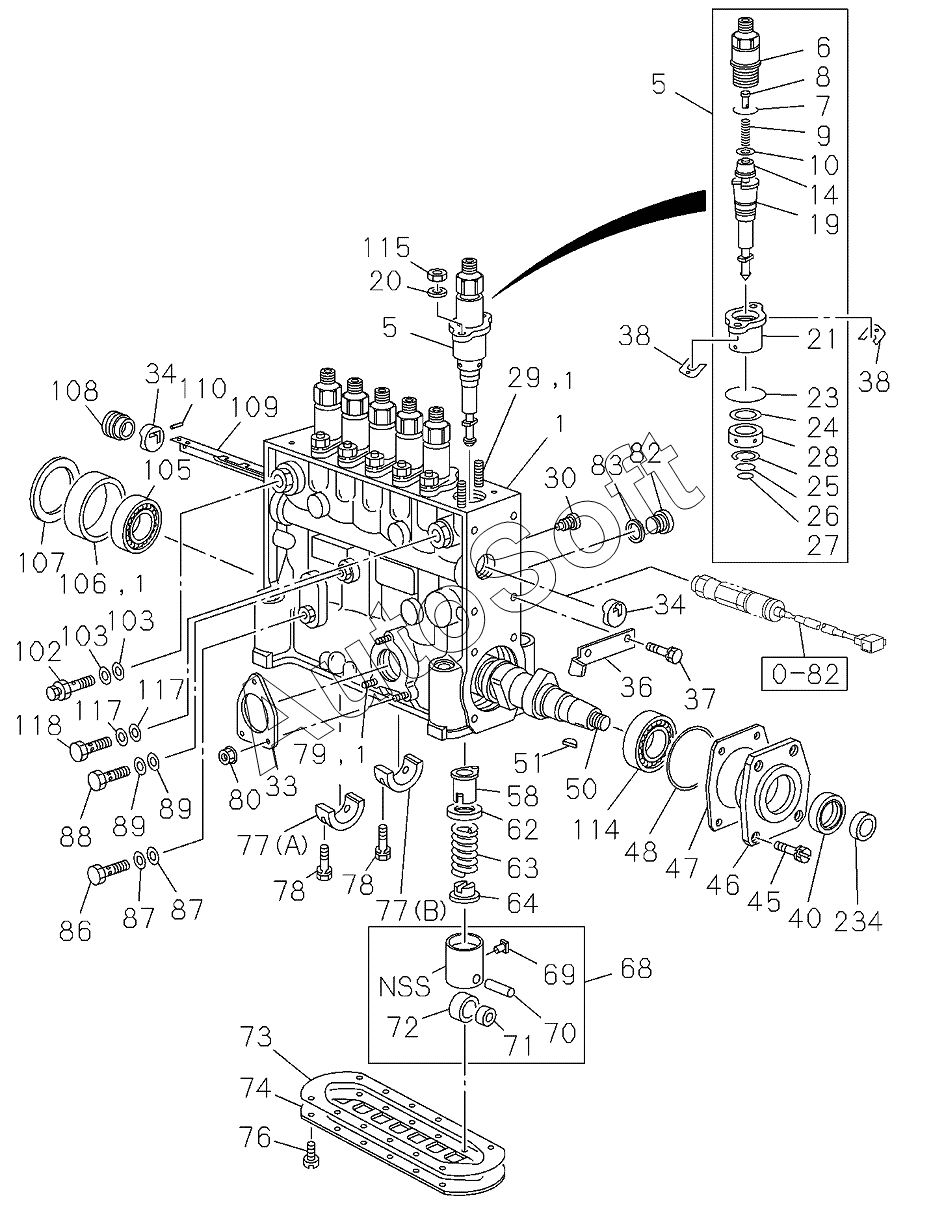

Каталог запасных частей к технике: Hitachi ISUZU 6HK1-XQA (Zaxis 330-330-3g) (2018). D00/06-, 1156112251 INJECTION PUMP
1
1
1
1
5
5
6
7
8
9
10
14
19
20
21
23
24
25
26
27
28
28
29
30
33
34
34
36
37
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
40
40
45
46
47
47
47
47
47
47
47
48
50
51
51
58
62
63
64
68
69
70
71
72
73
74
76
077(A)
077(B)
78
78
79
80
82
83
86
87
87
88
89
89
102
102
103
103
105
106
107
107
107
107
107
108
109
110
114
115
117
117
118
234
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 077(A) | 1***0 | BEARING, CM-SHF CENTER,INJ PUMP | |
| 077(B) | 1***0 | BEARING, CM-SHF CENTER,INJ PUMP | |
| 1 | 1***1 | HOUSING, PUMP,FUEL INJ | |
| 10 | 9***0 | GASKET, DELIVERY VLV,INJ PUMP | |
| 102 | 1***0 | VALVE, OVERFLOW,INJ PUMP | |
| 102 | 8***0 | VALVE, OVERFLOW,INJ PUMP | |
| 103 | 1***0 | GASKET, OVERFLOW VLV | |
| 105 | 9***0 | BEARING, CM-SHF RR,INJ PUMP | |
| 106 | 9***0 | RING, HSG,INJ PUMP | |
| 107 | 1***0 | SHIM, RR BEARING,CM-SHF | |
| 107 | 9***0 | SHIM, RR BEARING,CM-SHF | |
| 107 | 9***0 | SHIM, RR BEARING,CM-SHF | |
| 107 | 9***0 | SHIM, RR BEARING,CM-SHF | |
| 107 | 9***0 | SHIM, RR BEARING,CM-SHF | |
| 108 | 9***0 | BUSHING, CONT RACK END,INJ PUMP | |
| 109 | 1***0 | RACK, CONT,INJ PUMP | |
| 110 | 9***0 | PIN, CONT RACK,INJ PUMP | |
| 114 | 9***0 | BEARING, CM-SHF FRT,INJ PUMP | |
| 115 | 9***0 | NUT, PLUNGER FIX,INJ PUMP | |
| 117 | 1***0 | GASKET, OVERFLOW VLV | |
| 118 | 1***0 | BOLT, EYE,FUEL INL,INJ PUMP | |
| 14 | 1***0 | VALVE, DELIVERY,INJ PUMP | |
| 19 | 1***0 | PLUNGER ASM, INJ PUMP | |
| 20 | 1***0 | WASHER, PLUNGER BARREL | |
| 21 | 1***0 | FLANGE, PLUNGER | |
| 23 | 1***0 | GASKET, PLUNGER,BARREL SIDE | |
| 234 | 1***0 | SLEEVE, FRT COVER | |
| 24 | 9***0 | WASHER, PLUNGER,INJ PUMP | |
| 25 | 9***0 | RING, SNAP | |
| 26 | 1***0 | GASKET, PLUNGER UPR | |
| 27 | 1***0 | GASKET, PLUNGER LWR | |
| 28 | 1***0 | DEFLECTOR, PLUNGER | |
| 28 | 1***0 | DEFLECTOR, PLUNGER | |
| 29 | 9***0 | STUD, PLUNGER FIX,PUMP HSG | |
| 30 | 9***0 | PLUG, SCREW,INJ PUMP HSG | |
| 33 | 1***0 | GASKET, FUEL FEED PUMP,INJ PUMP | |
| 34 | 9***0 | BUSHING, CONT RACK,INJ PUMP | |
| 36 | 1***0 | POINTER, TIMING,INJ PUMP | |
| 37 | 9***0 | BOLT, POINTER FIX,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 1***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 38 | 8***0 | SHIM, PLUNGER BARREL,INJ PUMP | |
| 40 | 1***0 | SEAL, OIL,CM-SHF FRT,INJ PUMP | |
| 40 | 8***0 | SEAL, OIL,CM-SHF FRT,INJ PUMP | |
| 45 | 5***0 | BOLT, FRT COVER TO HSG | |
| 46 | 1***0 | COVER, FRT,PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 47 | 9***0 | SHIM, FRT COVER,INJ PUMP HSG | |
| 48 | 1***0 | GASKET, FRT COVER TO HSG | |
| 5 | 1***0 | PLUNGER COMPL, INJ PUMP | |
| 50 | 1***0 | CAMSHAFT, INJ PUMP | |
| 51 | 1***0 | KEY, DRIVE GEAR,INJ PUMP | |
| 51 | 1***0 | KEY, DRIVE GEAR,INJ PUMP | |
| 58 | 1***0 | SLEEVE, CONT,INJ PUMP | |
| 6 | 1***0 | HOLDER, DELIVERY VLV,INJ PUMP | |
| 62 | 9***0 | SEAT, PLUNGER SPRING,INJ PUMP | |
| 63 | 1***0 | SPRING, PLUNGER,INJ PUMP | |
| 64 | 1***0 | SEAT, PLUNGER SPRING LWR,INJ PUMP | |
| 68 | 1***0 | TAPPET, CM-SHF,INJ PUMP | |
| 69 | 1***0 | GUIDE, TAPPET,INJ PUMP | |
| 7 | 1***0 | GASKET, HOLDER,DELIVERY VLV | |
| 70 | 9***0 | PIN, TAPPET ROLLER,INJ PUMP | |
| 71 | 9***0 | BUSHING, TAPPET ROLLER,INJ PUMP | |
| 72 | 1***0 | ROLLER, TAPPET,INJ PUMP | |
| 73 | 1***0 | GASKET, COVER TO HSG | |
| 74 | 1***0 | COVER, HSG,INJ PUMP | |
| 76 | 1***0 | BOLT, COVER TO HSG | |
| 78 | 9***0 | BOLT, CENTER BRG,INJ PUMP | |
| 79 | 9***0 | STUD, FUEL FEED PUMP TO HSG | |
| 8 | 1***0 | STOPPER, DELIVERY VLV,INJ PUMP | |
| 80 | 8***0 | NUT, FUEL FEED PUMP FIX | |
| 82 | 9***0 | PLUG, HSG,INJ PUMP | |
| 83 | 1***0 | GASKET, HSG PLUG | |
| 86 | 1***0 | BOLT, EYE,OIL RETURN,INJ PUMP | |
| 87 | 1***0 | GASKET, OVERFLOW VLV | |
| 88 | 1***0 | BOLT, EYE,OIL FEED,INJ PUMP | |
| 89 | 1***0 | GASKET, OIL FEED BOLT,INJ PUMP | |
| 9 | 1***0 | SPRING, DELIVERY VLV |
