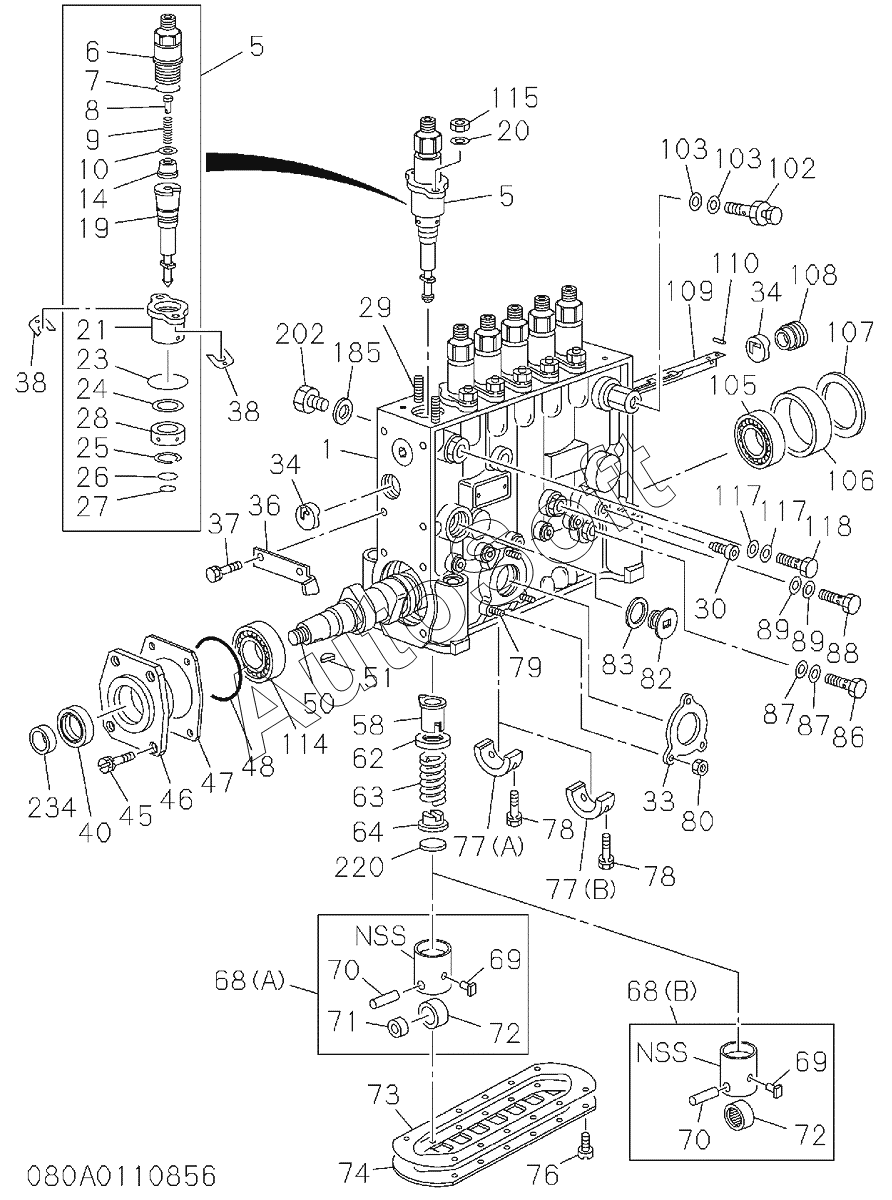

Каталог запасных частей к технике: Hitachi ISUZU 6WG1-TQA (2018). INJECTION PUMP, S/N: D01/11-

  1. Каталоги запчастей к технике
  2. Двигатели
  3. Hitachi
  4. ISUZU 6WG1-TQA (2018)
  5. INJECTION PUMP, S/N: D01/11-
zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
5
5
6
7
8
9
10
14
19
20
21
23
24
25
26
27
28
29
30
33
34
34
36
37
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
40
40
45
46
47
47
47
47
47
47
47
48
50
51
58
62
63
64
068(A)
69
69
70
70
71
72
72
73
74
76
077(A)
78
78
79
80
82
83
86
87
87
88
89
89
102
102
102
103
103
105
106
107
107
107
107
107
108
109
110
114
115
117
117
118
185
202
234
Позиция на иллюстрации Заводской номер детали Название детали
068(A) 1***0 TAPPET, CM-SHF,INJ PUMP
077(A) 1***0 BEARING, CM-SHF CENTER, INJ PUMP
1 1***0 HOUSING, PUMP, FUEL INJ
10 9***0 GASKET, DELIVERY VLV,INJ PUMP
102 1***0 VALVE, OVERFLOW,INJ PUMP
102 1***0 VALVE, OVERFLOW,INJ PUMP
102 8***0 VALVE, OVERFLOW,INJ PUMP
103 1***0 GASKET, OVERFLOW VLV
105 9***0 BEARING, CM-SHF RR,INJ PUMP
106 9***0 RING, HSG,INJ PUMP
107 1***0 SHIM, RR BEARING,CM-SHF
107 9***0 SHIM, RR BEARING,CM-SHF
107 9***0 SHIM, RR BEARING,CM-SHF
107 9***0 SHIM, RR BEARING,CM-SHF
107 9***0 SHIM, RR BEARING,CM-SHF
108 9***0 BUSHING, CONT RACK END,INJ PUMP
109 1***0 RACK, CONT,INJ PUMP
110 9***0 PIN, CONT RACK,INJ PUMP
114 9***0 BEARING, CM-SHF RR,INJ PUMP
115 9***0 NUT, PLUNGER FIX,INJ PUMP
117 1***0 GASKET, OVERFLOW VLV
118 1***0 BOLT, EYE,FUEL INL,INJ PUMP
14 1***0 VALVE, DELIVERY,INJ PUMP
185 1***0 GASKET, OVERFLOW VLV
19 1***0 PLUNGER ASM, INJ PUMP
20 1***0 WASHER, PLUNGER BARREL
202 9***0 PLUG, PUMP, SIDE
21 1***0 FLANGE, PLUNGER
23 1***0 GASKET, PLUNGER,BARREL SIDE
234 1***0 SLEEVE, FRT COVER
24 9***0 WASHER, PLUNGER,INJ PUMP
25 9***0 RING, SNAP
26 1***0 GASKET, PLUNGER UPR
27 1***0 GASKET, PLUNGER UPR
28 1***0 DEFLECTOR, PLUNGER
29 9***0 STUD, PLUNGER FIX,PUMP HSG
30 9***0 PLUG, SCREW,INJ PUMP HSG
33 1***0 GASKET, FUEL FEED PUMP,INJ PUMP
34 9***0 BUSHING, CONT RACK,INJ PUMP
36 1***0 POINTER, TIMING, INJ PUMP
37 9***0 BOLT, POINTER FIX,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
38 1***0 SHIM, PLUNGER BARREL,INJ PUMP
40 1***0 SEAL, OIL,CM-SHF FRT,INJ PUMP
40 8***0 SEAL, OIL,CM-SHF FRT,INJ PUMP
45 5***0 BOLT, FRT COVER TO HSG
46 1***0 COVER, FRT,PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
47 9***0 SHIM, FRT COVER,INJ PUMP HSG
48 1***0 GASKET, FRT COVER TO HSG
5 1***0 PLUNGER COMPL, INJ PUMP
50 1***0 CAMSHAFT, INJ PUMP
51 1***0 KEY, DRIVE GEAR,INJ PUMP
58 1***0 SLEEVE, CONT, INJ PUMP
6 1***0 HOLDER, DELIVERY VLV, INJ PUMP
62 9***0 SEAT, PLUNGER SPRING,INJ PUMP
63 1***0 SPRING, PLUNGER, INJ PUMP
64 1***0 SEAT, PLUNGER SPRING LWR,INJ PUMP
69 1***0 GUIDE, TAPPET,INJ PUMP
7 1***0 GASKET, HOLDER,DELIVERY VLV
70 9***0 PIN, TAPPET ROLLER,INJ PUMP
71 9***0 BUSHING, TAPPET ROLLER,INJ PUMP
72 1***0 ROLLER, TAPPET,INJ PUMP
73 1***0 GASKET, COVER TO HSG
74 1***0 COVER, HSG,INJ PUMP
76 1***0 BOLT, COVER TO HSG
78 9***0 BOLT, CENTER BRG,INJ PUMP
79 9***0 STUD, FUEL FEED PUMP TO HSG
8 1***0 STOPPER, DELIVERY VLV,INJ PUMP
80 8***0 NUT, FUEL FEED PUMP FIX
82 9***0 PLUG, HSG,INJ PUMP
83 1***0 GASKET, HSG PLUG
86 1***0 BOLT, EYE,FUEL INL,INJ PUMP
87 1***0 GASKET, OVERFLOW VLV
88 1***0 BOLT, EYE,OIL FEED,INJ PUMP
89 1***0 GASKET, OIL FEED BOLT,INJ PUMP
9 1***0 SPRING, DELIVERY VLV
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер. В демо-версии артикулы (номера деталей) скрыты. Если вы хотите видеть полные оригинальные номера запчастей, вам необходимо зарегистрироваться на нашем сайте и приобрести подписку по интересующей вас конфигурации, после этого вы сможете встроить онлайн-каталоги на ваш сайт или пользоваться ими из личного кабинета нашего сайта. Обращаем ваше внимание на то, что каталоги содержат информацию об оригинальных заводских номерах и названиях запчастей. База по аналогам в данный момент не реализована. Поиска по VIN-номерам в онлайн-каталоге не предусмотрено. Выбор конкретного каталога осуществляется путем открытия нужного типа техники, марки, модели с учетом года выпуска или модификации.
