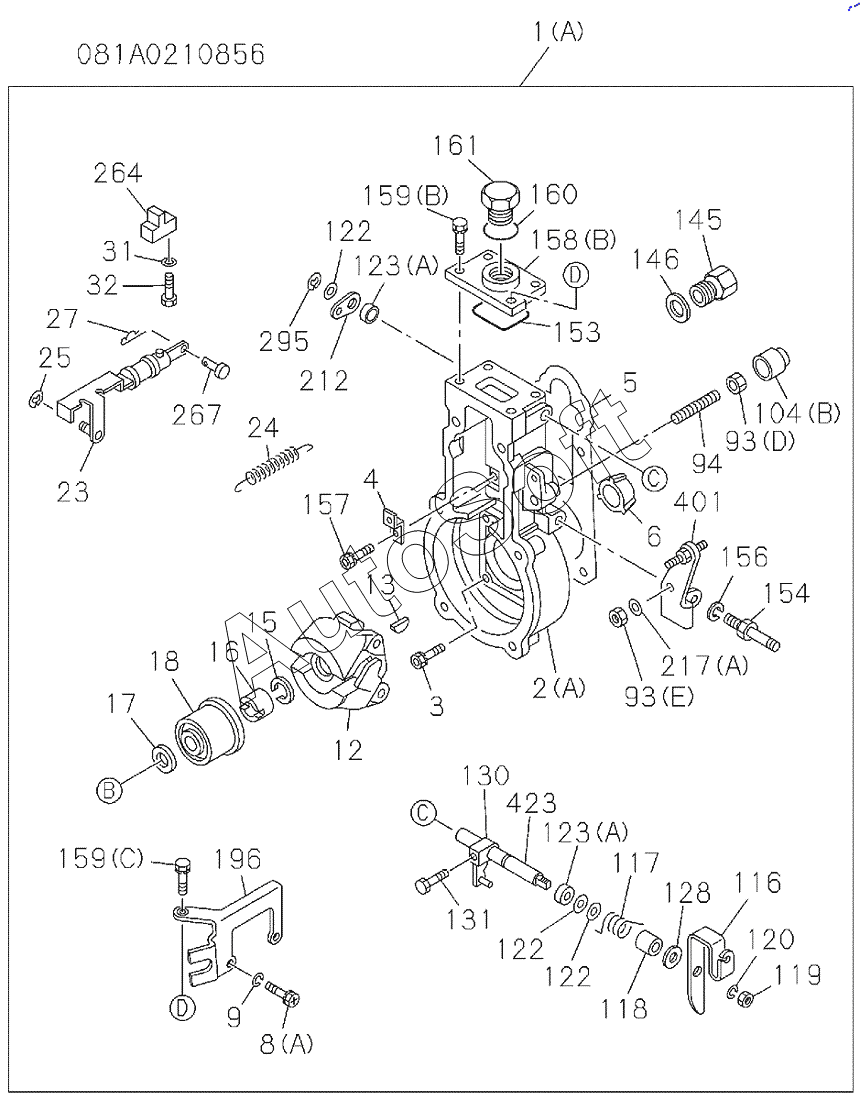

Каталог запасных частей к технике: Hitachi ISUZU 6WG1-TQA (2018). GOVERNOR, INJECTION PUMP (2/2), S/N: D00/09-D01/10
001(A)
002(A)
3
4
5
008(A)
9
12
13
13
15
16
17
17
17
17
17
17
17
17
17
18
23
24
25
27
31
32
093(D)
093(E)
94
104(B)
116
117
118
119
120
122
122
122
122
122
122
122
122
123(A)
123(A)
128
130
131
145
146
153
154
156
157
158(B)
159(B)
159(C)
160
161
196
212
217(A)
264
267
295
401
423
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 001(A) | 1***1 | GOVERNOR ASM, INJ PUMP | |
| 002(A) | 1***0 | HOUSING, GOV,INJ PUMP | |
| 007(A) | 1***0 | COVER, GOV HSG, INJ PUMP | |
| 008(A) | 1***0 | BOLT, GOV COVER, INJ PUMP | |
| 008(D) | 5***0 | BOLT, GOV COVER,INJ PUMP | |
| 045(A) | 8***0 | LEVER ASM, GOV, INJ PUMP | |
| 045(B) | 1***0 | LEVER ASM, GOV, INJ PUMP | |
| 060(A) | 9***0 | BOLT, COVER FIX,GOV COVER | |
| 060(B) | 5***0 | BOLT, COVER FIX,GOV COVER | |
| 093(B) | 1***0 | NUT, ADJ SCREW LK,INJ PUMP GOV | |
| 093(C) | 1***0 | NUT, ADJ SCREW LK, INJ PUMP GOV | |
| 093(C) | 9***0 | NUT, ADJ SCREW LK,INJ PUMP GOV | |
| 093(D) | 1***0 | NUT, ADJ SCREW LK,INJ PUMP GOV | |
| 093(E) | 1***0 | NUT, ADJ SCREW LK,INJ PUMP GOV | |
| 101 | 8***0 | GASKET, ADJ SPRING CAPSULE,GOV | |
| 103 | 1***0 | NUT, CAP,ADJ SPRING CAPSULE,GOV | |
| 104(A) | 1***0 | CAP, LOCK NUT,ADJ SCREW | |
| 104(B) | 8***0 | CAP, LOCK NUT,ADJ SCREW | |
| 104(C) | 1***0 | CAP, LOCK NUT,ADJ SCREW | |
| 106 | 9***0 | KEY, FLYWEIGHT,GOV | |
| 107 | 9***0 | WASHER, SWIVEL LEVER,GOV | |
| 108 | 1***0 | COLLAR, SWIVEL LEVER,GOV | |
| 109(A) | 1***0 | SHIM, SWIVEL LEVER,GOV | |
| 109(B) | 9***0 | SHIM, SWIVEL LEVER,GOV | |
| 11 | 1***0 | GASKET, COVER TO HSG,GOV | |
| 110 | 1***0 | SEAL, OIL,SWIVEL LEVER,GOV | |
| 111(A) | 8***0 | BUSHING, SWIVEL LEVER,GOV | |
| 111(B) | 8***0 | BUSHING, SWIVEL LEVER,GOV | |
| 112 | 1***0 | GASKET, SWIVEL LEVER,GOV | |
| 113 | 9***0 | RING, SNAP,SWIVEL LEVER,GOV | |
| 116 | 1***0 | LEVER, ENG STOP, GOV | |
| 117 | 1***0 | SPRING, STOP LEVER, GOV | |
| 118 | 1***0 | COLLAR, CONT SHAFT,GOV | |
| 119 | 1***0 | NUT, ENG STOP LEVER,GOV | |
| 12 | 1***0 | FLYWEIGHT ASM, GOV | |
| 120 | 1***0 | WASHER, LK,SPD ADJ LEVER,GOV | |
| 122 | 1***0 | WASHER, CONT SHAFT,GOV | |
| 122 | 1***0 | WASHER, CONT SHAFT,GOV | |
| 123(A) | 1***0 | SEAL, OIL,CONT SHAFT,GOV | |
| 128 | 1***0 | SHIM, CONT SHAFT,GOV | |
| 13 | 5***0 | KEY, FLYWEIGHT,GOV | |
| 13 | 9***0 | KEY, FLYWEIGHT,GOV | |
| 130 | 1***0 | LEVER, CONT,GOV | |
| 131 | 1***0 | SCREW, LEVER TO SHAFT,GOV | |
| 145 | 1***0 | CAP, GOV COVER,INJ PUMP | |
| 146 | 9***0 | GASKET, COVER CAP,GOV | |
| 15 | 5***0 | WASHER, LK,FLYWEIGHT FIX,GOV | |
| 153 | 1***0 | GASKET, GOV HSG,INJ PUMP | |
| 154 | 8***0 | BOLT, GOV HSG | |
| 156 | 1***0 | WASHER, LK,SPD ADJ LEVER,GOV | |
| 157 | 9***0 | BOLT, CENTER BRG,INJ PUMP | |
| 158(A) | 8***0 | COVER, GOV HSG | |
| 158(B) | 8***0 | COVER, GOV HSG | |
| 159(A) | 1***0 | BOLT, COVER | |
| 159(B) | 9***0 | BOLT, COVER FIX,GOV COVER | |
| 159(C) | 1***0 | BOLT, COVER | |
| 16 | 9***0 | NUT, FLYWEIGHT FIX,GOV | |
| 160 | 1***0 | GASKET, PLUG TO HSG | |
| 161 | 1***0 | PLUG, HSG | |
| 17 | 1***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 1***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 1***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 5***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 5***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 175 | 1***0 | LEVER, GOV,INJ PUMP | |
| 177(A) | 1***0 | RING, SNAP,GOV LEVER,INJ PUMP | |
| 177(B) | 9***0 | RING, SNAP | |
| 18 | 5***0 | SLEEVE, GOV | |
| 196 | 1***0 | BRACKET, COVER | |
| 209 | 8***0 | DIAPHRAGM, GOV | |
| 21 | 1***0 | LEVER ASM, GUIDE, GOV | |
| 211 | 9***0 | NUT, LOCK,GOV | |
| 212 | 1***0 | PLATE, GOV | |
| 217(A) | 1***0 | SHIM, GOV | |
| 217(B) | 1***0 | SHIM, GOV | |
| 217(C) | 9***0 | SHIM, GOV | |
| 217(C) | 9***0 | SHIM, GOV | |
| 217(D) | 9***0 | SHIM, GOV | |
| 218 | 9***0 | NUT, LOCK,GOV | |
| 221 | 1***0 | WASHER, LK,DIAPH | |
| 23 | 1***0 | LINK, LEVER TO CONT RACK,GOV | |
| 231 | 9***0 | WASHER, GOV LEVER | |
| 232 | 1***0 | PIN, RET,LEVER | |
| 239 | 1***0 | SCREW, GOV | |
| 24 | 5***0 | SPRING, START,GOV,INJ PUMP | |
| 248 | 1***0 | PUSH ROD | |
| 25 | 9***0 | RING, SNAP | |
| 264 | 1***0 | CONNECTOR, CONT RACK,GOV | |
| 267 | 1***0 | BOLT, CONN,CONT RACK,GOV | |
| 27 | 1***0 | PIN, SNAP,CONN PIN,CONT RACK | |
| 295 | 1***0 | RING, SNAP | |
| 3 | 9***0 | BOLT, CENTER BRG,INJ PUMP | |
| 31 | 1***0 | WASHER, LK,CONT RACK,GOV | |
| 32 | 1***0 | SCREW, CONT RACK,GOV | |
| 352 | 1***0 | NUT, CAP | |
| 369 | 9***0 | PIN, SPLIT,SHAFT | |
| 37 | 8***0 | LEVER ASM, TENSION, GOV | |
| 4 | 9***0 | PLATE, START SPRING,GOV | |
| 40 | 1***0 | SCREW, LEVER ADJ, GOV | |
| 401 | 1***0 | BRACKET, HOUSING | |
| 41 | 1***0 | SPRING CAPSULE, IDLE CONT, GOV | |
| 413(A) | 1***0 | GASKET, GOV COVER | |
| 413(B) | 5***0 | GASKET, GOV COVER | |
| 423 | 1***0 | SHAFT, CONT,GOV HSG,INJ PUMP | |
| 429(A) | 8***0 | GASKET, CAP NUT | |
| 429(B) | 5***0 | GASKET, CAP NUT | |
| 43 | 9***0 | NUT, IDLING CONT SPRING,GOV | |
| 430 | 1***0 | CAP NUT, ADJ LEVER | |
| 435 | 1***0 | BOLT, EYE,GOV COVER | |
| 436 | 1***0 | GASKET, EYE BOLT | |
| 437 | 1***0 | SPRING, DIAPHRAGM | |
| 465 | 9***0 | LINK, GOVERNOR | |
| 474 | 1***0 | ADAPTER, GOVERNOR,INJ PUMP | |
| 5 | 1***0 | GASKET, GOV TO INJ PUMP HSG | |
| 59 | 1***0 | COVER, GOV COVER | |
| 63 | 1***0 | GASKET, COVER TO GOV COVER | |
| 71 | 5***0 | SPRING, CONT LEVER, GOV | |
| 88 | 9***0 | BOLT, LEVER PIVOT,GOV | |
| 89 | 9***0 | GASKET, LEVER PIVOT BOLT,GOV | |
| 9 | 9***0 | WASHER, LK,GOV COVER | |
| 90 | 5***0 | SCREW, FULL LOAD ADJ,GOV | |
| 91 | 1***0 | SPRING CAPSULE, ADJ,GOV | |
| 94 | 8***0 | SCREW, ADJ,CONT LEVER,GOV | |
| 96 | 5***0 | PLUG, LEVER SHAFT,GOV | |
| 99 | 1***0 | PIN, TENSION LEVER,GOV |
