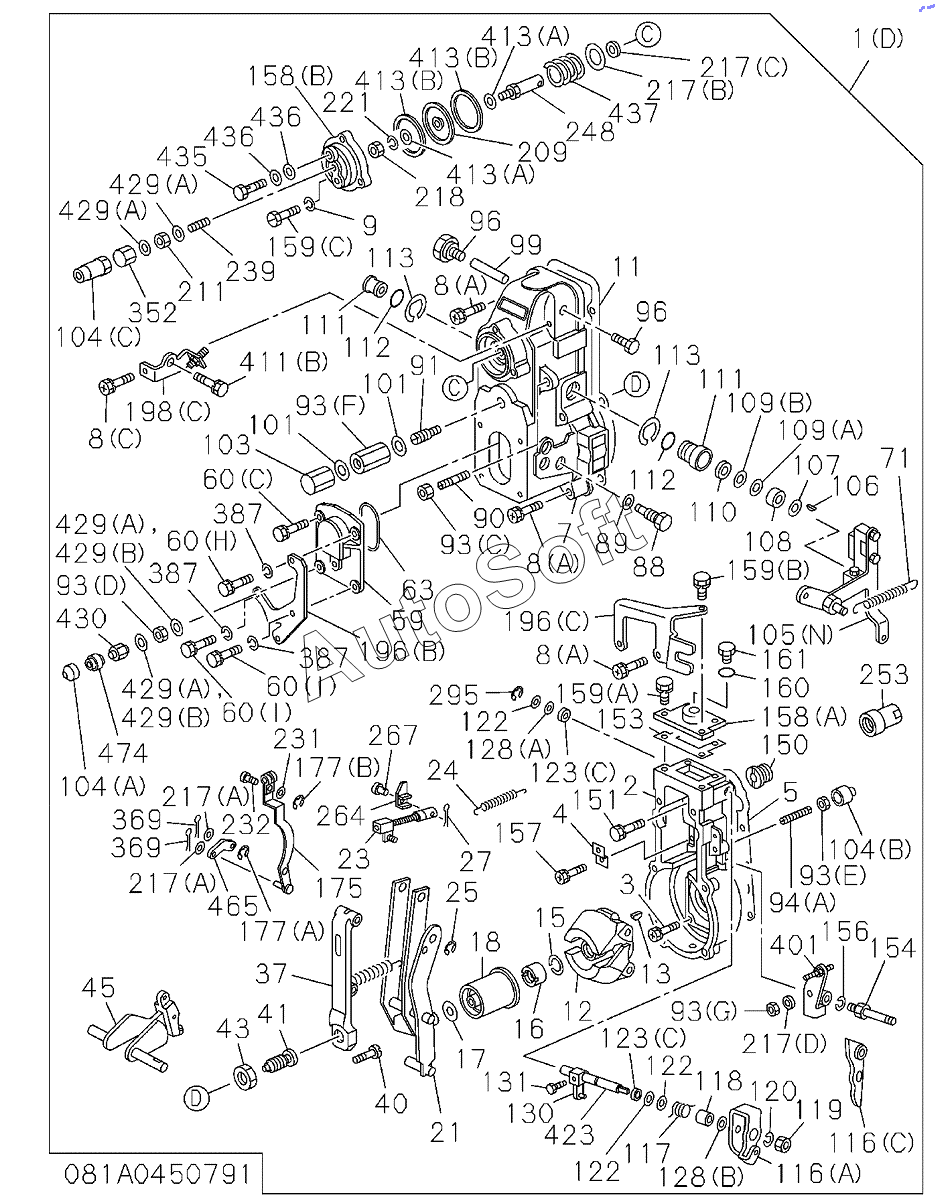

Каталог запасных частей к технике: Hitachi ISUZU 4BG1-TRG (2016). GOVERNOR, INJECTION PUMP (1-2), S.N: D00-05-
101
101
103
104(A)
104(B)
106
107
108
109(A)
109(B)
110
111
111
111
111
111
111
112
112
113
113
150
154
156
157
160
161
253
387
387
429(A)
429(A)
430
474
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1(A) | 8***1 | GOVERNOR ASM, INJ PUMP | |
| 101 | 8***0 | GASKET, ADJ SPRING CAPSULE,GOV | |
| 103 | 1***0 | NUT, CAP,ADJ SPRING CAPSULE,GOV | |
| 104(A) | 1***0 | CAP, LOCK NUT,ADJ SCREW | |
| 104(B) | 8***0 | CAP, LOCK NUT,ADJ SCREW | |
| 105(B) | 1***0 | LEVER, SPD CONT, GOV | |
| 105(G) | 8***0 | LEVER, SPD CONT, GOV | |
| 106 | 9***0 | KEY, FLYWEIGHT,GOV | |
| 107 | 9***0 | WASHER, SWIVEL LEVER,GOV | |
| 108 | 1***0 | COLLAR, SWIVEL LEVER,GOV | |
| 109(A) | 1***0 | SHIM, SWIVEL LEVER,GOV | |
| 109(B) | 9***0 | SHIM, SWIVEL LEVER,GOV | |
| 11 | 1***0 | GASKET, COVER TO HSG,GOV | |
| 110 | 1***0 | SEAL, OIL,SWIVEL LEVER,GOV | |
| 111 | 8***0 | BUSHING, SWIVEL LEVER,GOV | |
| 111 | 8***0 | BUSHING, SWIVEL LEVER,GOV | |
| 112 | 1***0 | GASKET, SWIVEL LEVER,GOV | |
| 113 | 9***0 | RING, SNAP,SWIVEL LEVER,GOV | |
| 12 | 1***0 | FLYWEIGHT ASM, GOV | |
| 125 | 9***0 | CAP, STOP LEVER SPRING, GOV | |
| 13 | 5***0 | KEY, FLYWEIGHT,GOV | |
| 15 | 5***0 | WASHER, LK,FLYWEIGHT FIX,GOV | |
| 150 | 9***0 | ADAPTER, GOV HSG, INJ PUMP | |
| 154 | 1***0 | BOLT, GOV HSG | |
| 156 | 1***0 | WASHER, LK,SPD ADJ LEVER,GOV | |
| 157 | 9***0 | BOLT, START SPRING PLATE, GOV | |
| 16 | 9***0 | NUT, FLYWEIGHT FIX,GOV | |
| 160 | 1***0 | GASKET, PLUG TO HSG | |
| 161 | 1***0 | PLUG, HSG | |
| 17 | 1***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 1***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 1***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 5***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 5***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 17 | 9***0 | SHIM, FLYWEIGHT SLEEVE,GOV | |
| 18 | 5***0 | SLEEVE, GOV | |
| 196(A) | 8***0 | BRACKET, COVER | |
| 2 | 5***0 | HOUSING, GOV, INJ PUMP | |
| 21 | 5***0 | LEVER ASM, GUIDE, GOV | |
| 23 | 1***0 | LINK, LEVER TO CONT RACK, GOV | |
| 24 | 9***0 | SPRING, START, GOV, INJ PUMP | |
| 25 | 9***0 | RING, SNAP | |
| 253 | 1***0 | LIMITTER, GOV CONT | |
| 28 | 5***0 | LEVER, SUPPORTING, GOV | |
| 3 | 5***0 | BOLT, FRT COVER TO HSG | |
| 34 | 1***0 | SPRING, SPD CONT LEVER, GOV | |
| 37 | 8***0 | LEVER ASM, TENSION, GOV | |
| 387 | 9***0 | WASHER, LK,GOV COVER | |
| 4 | 1***0 | SCREW, LEVER ADJ, GOV | |
| 4 | 8***0 | PLATE, START SPRING, GOV | |
| 41 | 1***0 | SPRING CAPSULE, IDLE CONT, GOV | |
| 429(A) | 5***0 | GASKET, CAP NUT | |
| 43 | 9***0 | NUT, IDLING CONT SPRING,GOV | |
| 430 | 1***0 | CAP NUT, ADJ LEVER | |
| 45 | 8***0 | LEVER ASM, GOV, INJ PUMP | |
| 474 | 1***0 | ADAPTER, GOVERNOR, INJ PUMP | |
| 5 | 1***0 | GASKET, GOV TO INJ PUMP HSG | |
| 59 | 8***0 | COVER, GOV COVER | |
| 60(C) | 9***0 | BOLT, COVER FIX,GOV COVER | |
| 60(D) | 1***0 | BOLT, COVER FIX, GOV COVER | |
| 60(E) | 8***0 | BOLT, COVER FIX, GOV COVER | |
| 63 | 1***0 | GASKET, COVER TO GOV COVER | |
| 7 | 5***0 | COVER, GOV HSG, INJ PUMP | |
| 71 | 1***0 | SPRING, CONT LEVER,GOV | |
| 79 | 1***0 | SHIM, LEVER SETTING, GOV | |
| 79 | 1***0 | SHIM, LEVER SETTING, GOV | |
| 79 | 1***0 | SHIM, LEVER SETTING, GOV | |
| 79 | 1***0 | SHIM, LEVER SETTING, GOV | |
| 79 | 1***0 | SHIM, LEVER SETTING, GOV | |
| 79 | 1***0 | SHIM, LEVER SETTING, GOV | |
| 8(A) | 5***0 | BOLT, GOV COVER, INJ PUMP | |
| 8(A) | 5***0 | BOLT, GOV COVER,INJ PUMP | |
| 83 | 1***0 | SEAL, OIL, CONT SHAFT, GOV | |
| 86 | 9***0 | BUSHING, CONT SHAFT, GOV COVER | |
| 87 | 9***0 | BOLT, COVER FIX,GOV COVER | |
| 9 | 9***0 | SCREW, FULL LOAD ADJ, GOV | |
| 91 | 5***0 | SPRING CAPSULE, ADJ, GOV | |
| 93(B) | 1***0 | NUT, ADJ SCREW LK, INJ PUMP GOV | |
| 93(C) | 1***0 | NUT, ADJ SCREW LK,INJ PUMP GOV | |
| 93(D) | 1***0 | NUT, ADJ SCREW LK, INJ PUMP GOV | |
| 93(E) | 9***0 | NUT, ADJ SCREW LK,INJ PUMP GOV | |
| 94(A) | 8***0 | SCREW, ADJ,CONT LEVER,GOV | |
| 96 | 5***0 | PLUG, LEVER SHAFT,GOV | |
| 99 | 9***0 | PIN, TENSION LEVER, GOV |
