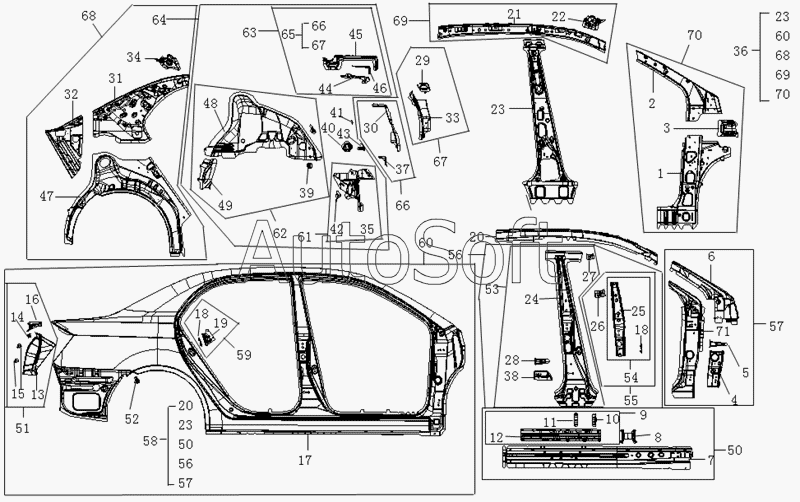

Каталог запасных частей к технике: Geely FC (2008). RIGHT SIDE WALL ASSY.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
56
56
57
57
58
59
60
60
61
62
63
64
65
66
66
67
67
68
68
69
69
70
70
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1062000470 | 1***0 | RIGHT SIDE WALL ASSY. | |
| 1 | 1***5 | RIGHT A-PILLAR INNER PLATE LOWER PART ASSY. | |
| 2 | 1***4 | RIGHT A-PILLAR INNER PLATE UPPER PART ASSY. | |
| 3 | R***E | RIGHT A-PILLAR INNER PLATE CONNECTING PLATE | |
| 4 | L***Y | LOWER GEMEL FIXING PLATE ASSY. | |
| 5 | F***Y | FR CHECK FRAME ASSY. | |
| 6 | 1***0 | RIGHT A-PILLAR UPPER REINFORCEMENT ASSY. | |
| 7 | R***Y | RIGHT SIDE WALL LOWER FRAME REINFORCEMENT ASSY. | |
| 8 | R***T | RIGHT SIDE WALL LOWER FRAME CHECK BRACKET | |
| 9 | R***Y | RIGHT SIDE WALL LOWER FRAME INNER LINER ASSY. | |
| 10 | R***T | RIGHT SIDE WALL LOWER FRAME INNER LINER FRONT BRACKET | |
| 11 | R***T | RIGHT SIDE WALL LOWER FRAME INNER LINER REAR BRACKET | |
| 12 | R***R | RIGHT SIDE WALL LOWER FRAME INNER LINER | |
| 13 | 1***9 | RIGHT TAILLIGHT FIXING PLATE | |
| 14 | T***T | TAILLIGHT UPPER PLATE BRACKET | |
| 15 | T***T | TAILLIGHT SMALL BRACKET | |
| 16 | R***R | RIGHT TAILLIGHT UPPER QUARTER | |
| 17 | 1***8 | RIGHT SIDE WALL OUTER PANEL | |
| 18 | D***Y | DOOR RIGHT HOOK FIXING PLATE ASSY. | |
| 19 | R***T | RR DOOR LOCK HOOK REINFORCEMENT | |
| 20 | R***T | RIGHT SIDE WALL UPPER FRAME REINFORCEMENT | |
| 21 | R***Y | RIGHT SIDE WALL UPPER SIDE PLATE SUB-ASSY. | |
| 22 | 1***E | 1# CROSS MEMBER CONNECTING PLATE | |
| 23 | R***Y | RIGHT CENTER PILLAR INNER PLATE ASSY. | |
| 24 | R***Y | RIGHT CENTER PILLAR OUTER REINFORCEMENT SUB-ASSY. | |
| 25 | R***T | RIGHT CENTER PILLAR INNER REINFORCEMENT | |
| 26 | R***E | RF SAFETY BELT LOWER ADJUSTABLE PLATE | |
| 27 | R***Y | RF SAFETY BELT LOWER FIXING PLATE ASSY. | |
| 28 | R***Y | RR DOOR CHECK ROD FRAME ASSY. | |
| 29 | R***E | RIGHT TRUNK BOARD SIDE PLATE | |
| 30 | R***Y | RIGHT TRUNK BOARD UPPER PLATE SUB-ASSY. | |
| 31 | R***Y | RR PILLAR INNER PLATE ASSY. | |
| 32 | R***R | RR PILLAR QUARTER | |
| 33 | R***D | RIGHT TRUNK BOARD | |
| 34 | R***E | RR CROSS MEMBER 3-WAYS CONNECTING PLATE | |
| 35 | R***Y | RR WHEEL INNER FRONT CONNECTING PLATE SUB-ASSY. | |
| 36 | F***Y | FUEL FILLER PIPE FIXING PLATE ASSY. | |
| 37 | R***E | RIGHT TRUNK BOARD CONNECTING PLATE | |
| 38 | R***Y | RIGHT CENTER PILLAR LOWER HINGE SEAT ASSY. | |
| 39 | R***Y | REAR SEAT SAFETY BELT FIXING PLATE ASSY. | |
| 40 | R***Y | RR SEAT FIXING BRACKET ASSY. | |
| 41 | R***D | REAR SEAT SIDE SUPPORT BOARD | |
| 42 | R***T | RR WHEEL BRAKE PIPE BRACKET | |
| 43 | R***Y | RR SEAT SIDE SUPPORT BOARD ASSY. | |
| 44 | H***T | HINGE SEAT REINFORCEMENT | |
| 45 | R***D | RIGHT HINGE SEAT FIXING BOARD | |
| 46 | R***Y | RIGHT HINGE SEAT FIXING BOARD REINFORCEMENT ASSY. | |
| 47 | R***Y | RR WHEEL OUTER COVER SUB-ASSY. | |
| 48 | R***R | RR WHEEL INNER COVER | |
| 49 | R***E | RR WHEEL INNER QUARTER CONNECTING PLATE | |
| 50 | R***Y | RIGHT SIDE WALL LOWER FRAME REINFORCEMENT ASSY. | |
| 51 | 1***9 | RIGHT TAILLIGHT FIXING PLATE | |
| 52 | G***T | GASOLINE TANK CAP CONTROL CABLE SEAT | |
| 53 | R***Y | RIGHT CENTER PILLAR OUTER REINFORCEMENT ASSY. | |
| 54 | R***Y | RIGHT CENTER PILLAR INNER REINFORCEMENT 1# SUB-ASSY. | |
| 55 | R***Y | RIGHT CENTER PILLAR INNER REINFORCEMENT 2# SUB-ASSY. | |
| 56 | R***Y | RIGHT CENTER PILLAR INNER REINFORCEMENT ASSY. | |
| 57 | 1***7 | RIGHT A-PILLAR INNER REINFORCEMENT PANEL ASSY. | |
| 58 | R***Y | RIGHT SIDE WALL INNER REINFORCEMENT ASSY. | |
| 59 | R***Y | RR DOOR LOCK HOOK FIXING PLATE ASSY. | |
| 60 | R***Y | RIGHT SIDE WALL OUTER PANEL ASSY. | |
| 61 | R***E | RR WHEEL INNER FRONT CONNECTING PLATE | |
| 62 | R***Y | RR WHEEL INNER COVER ASSY. | |
| 63 | R***Y | RIGHT TRUNK BOARD ASSY. | |
| 64 | R***Y | RR WHEEL HOUSING ASSY. | |
| 65 | R***) | RIGHT TRUNK BOARD SUB-ASSY. (2) | |
| 66 | R***Y | RIGHT TRUNK MAINBOARD UPPER PANEL ASSY. | |
| 67 | R***) | RIGHT TRUNK BOARD SUB-ASSY. (1) | |
| 68 | R***Y | RR WHEEL COVER ASSY. | |
| 69 | R***Y | RIGHT SIDE WALL UPPER SIDE PLATE ASSY. | |
| 70 | R***Y | RIGHT A-PILLAR INNER PLATE ASSY. | |
| 71 | R***Y | RIGHT A-PILLAR INNER PLATE REINFORCEMENT ASSY. |
